| Gross vehicle mass | 11,000 (kg) |
|---|---|
| Overall Dimension | 6,100 x 2,280 x 2,540 (mm) |
| Max. power | 205 (150) / 2,600 (Ps(kW) / rpm) |
| Emission standard | EURO 5 |
| Manufacturer name | Isuzu Vietnam Co., Ltd |
| Manufacturer address | 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City |
| Origin | Vietnam |
| SUGGESTED RETAIL PRICE | 946,080,000 VNĐ |
* Applied for cabin chassis. (Price is included VAT)

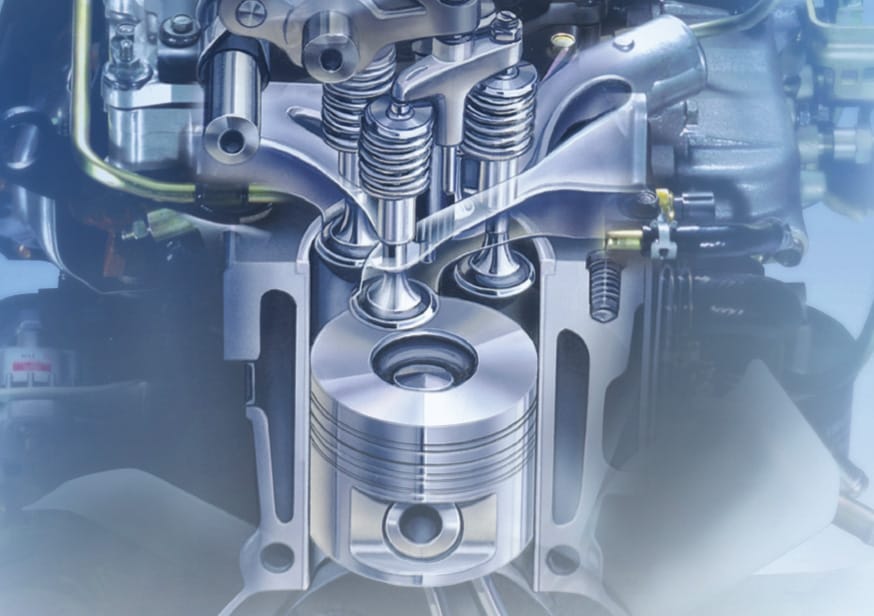

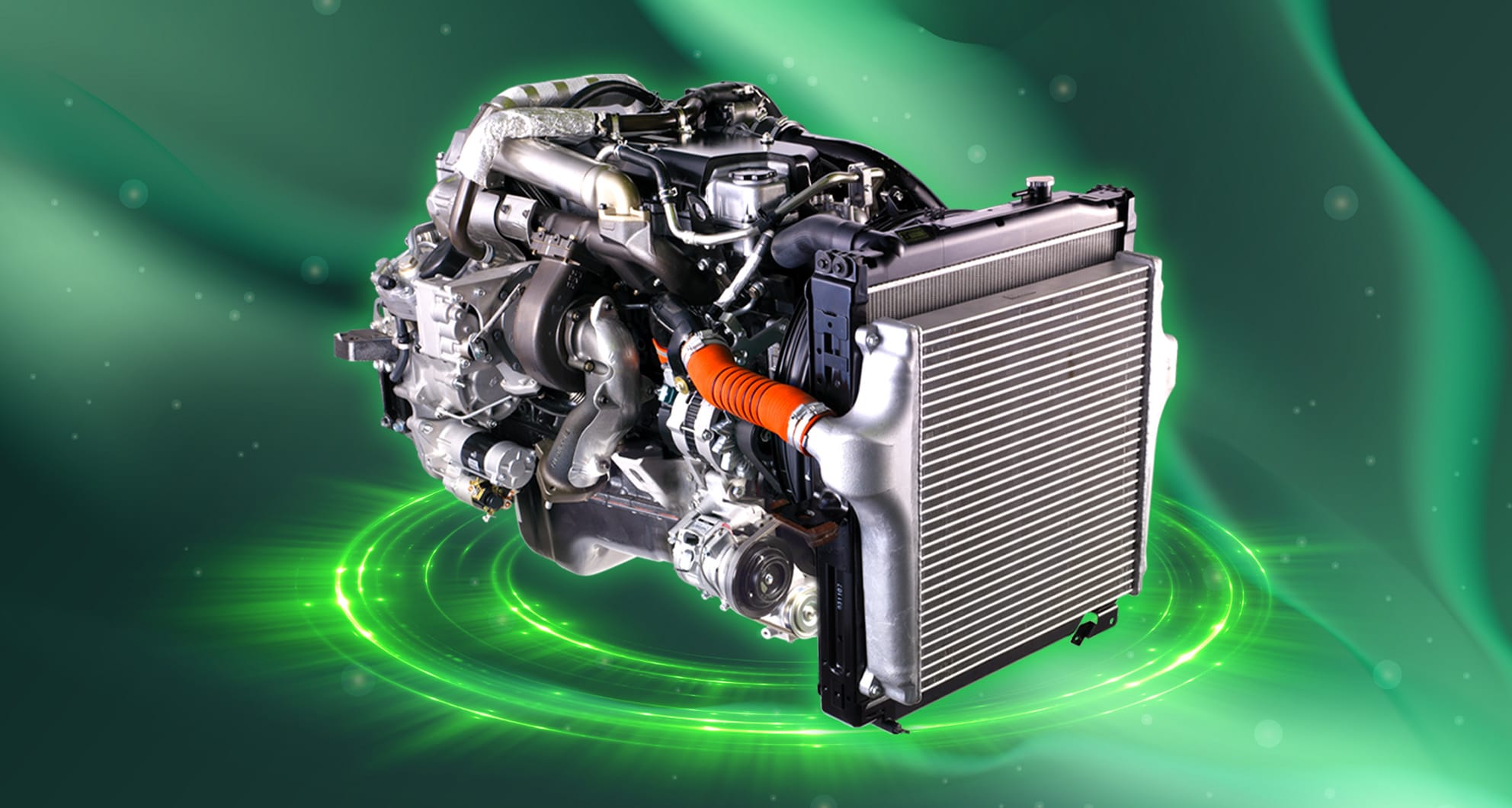

Fuel efficiency is the outstanding features of ISUZU engine, which is always focuses in any ISUZU engine innovation and contributing to optimizing the benefits of customers.

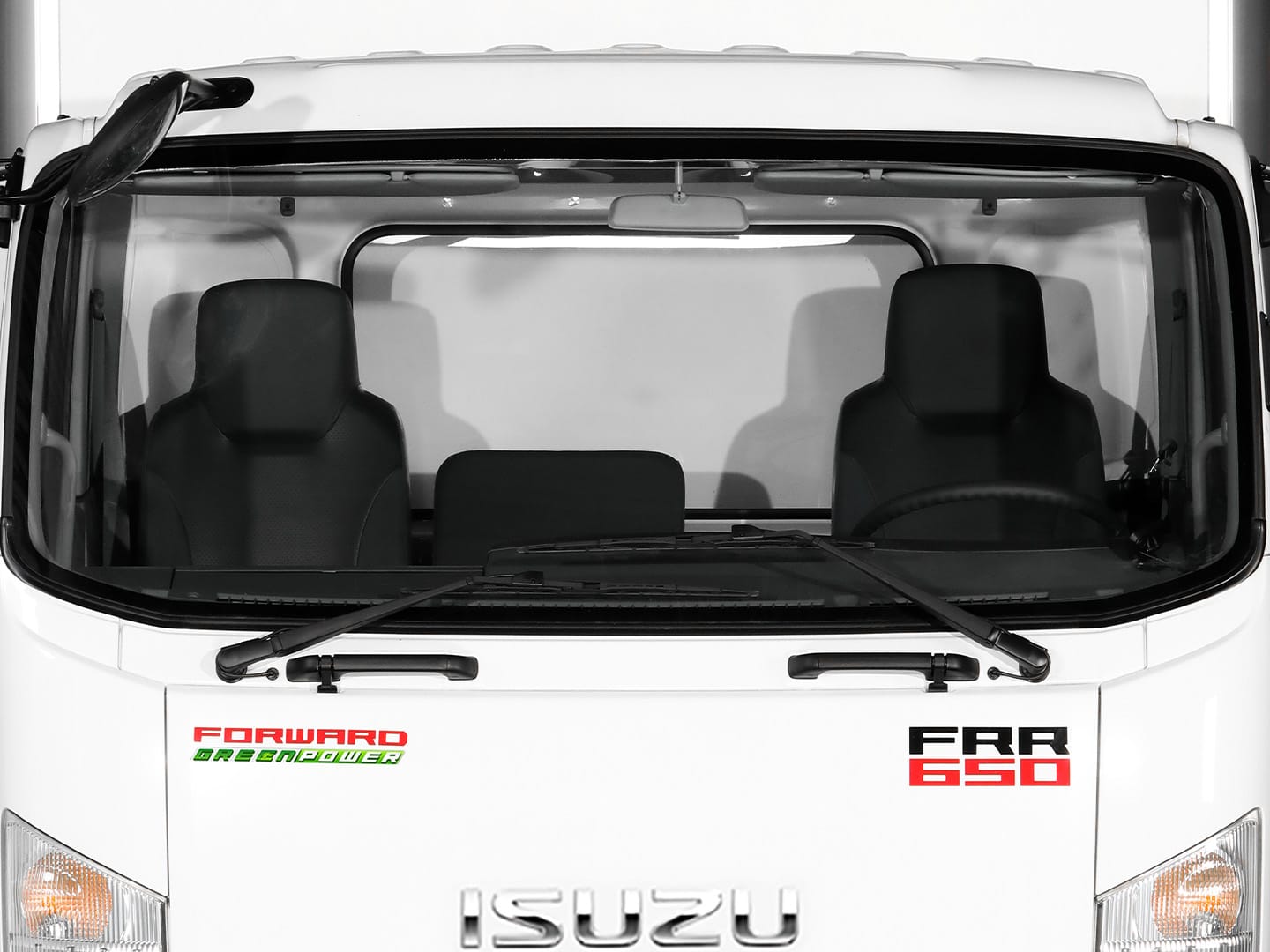

Spacious cabin typical design of ISUZU trucks to provide more space; while increasing the size of the rear body to help carry more goods.

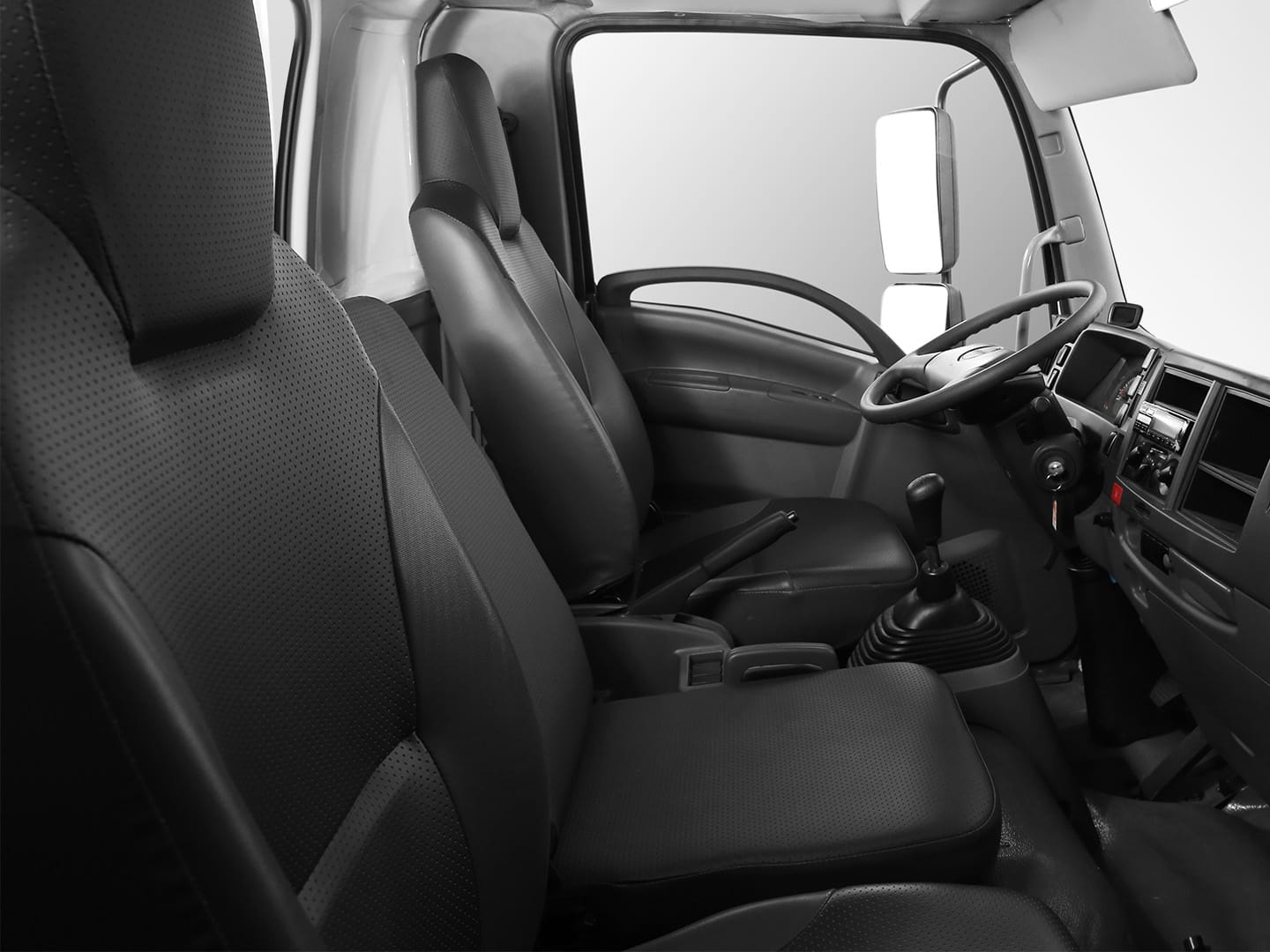

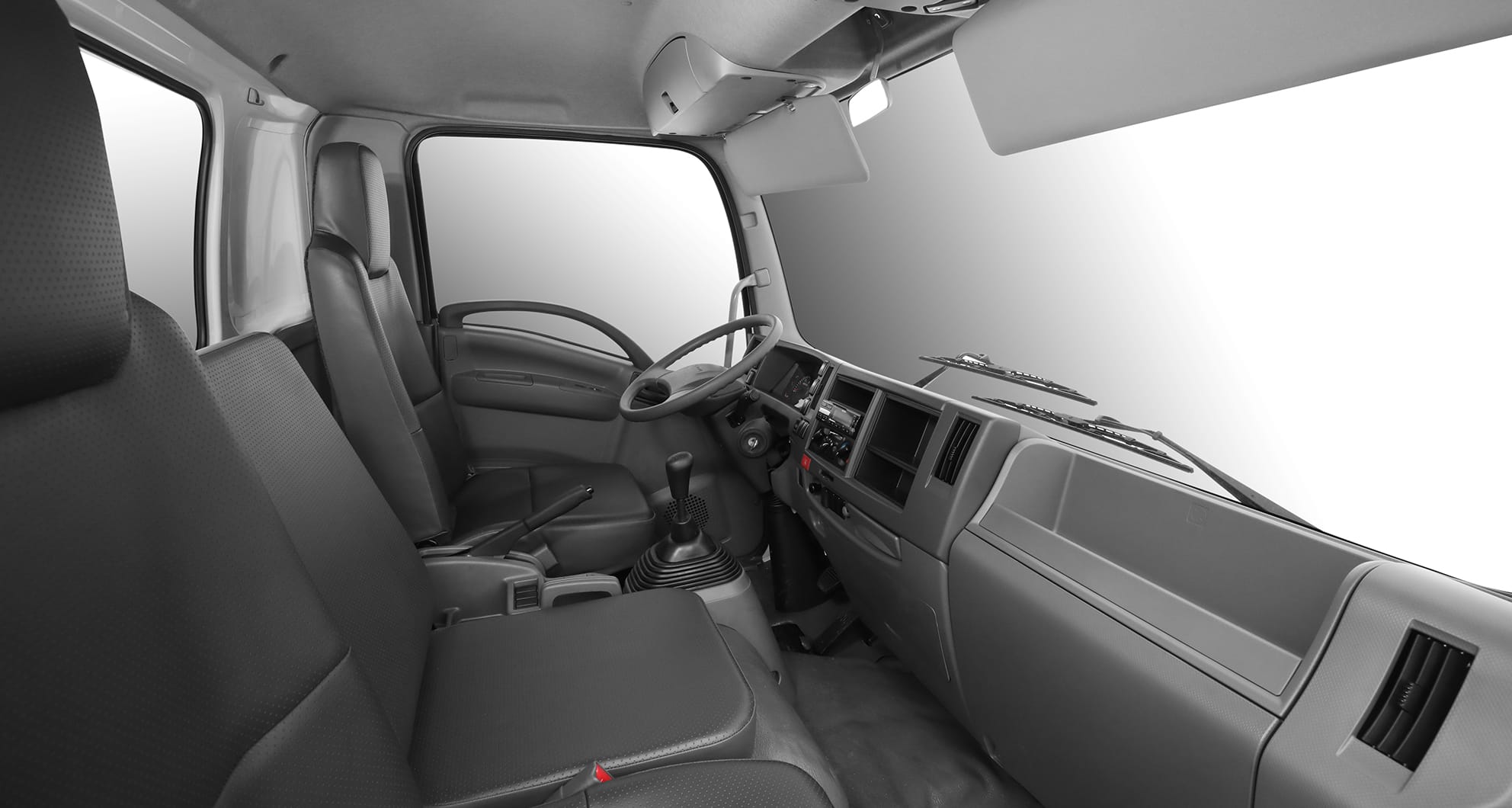

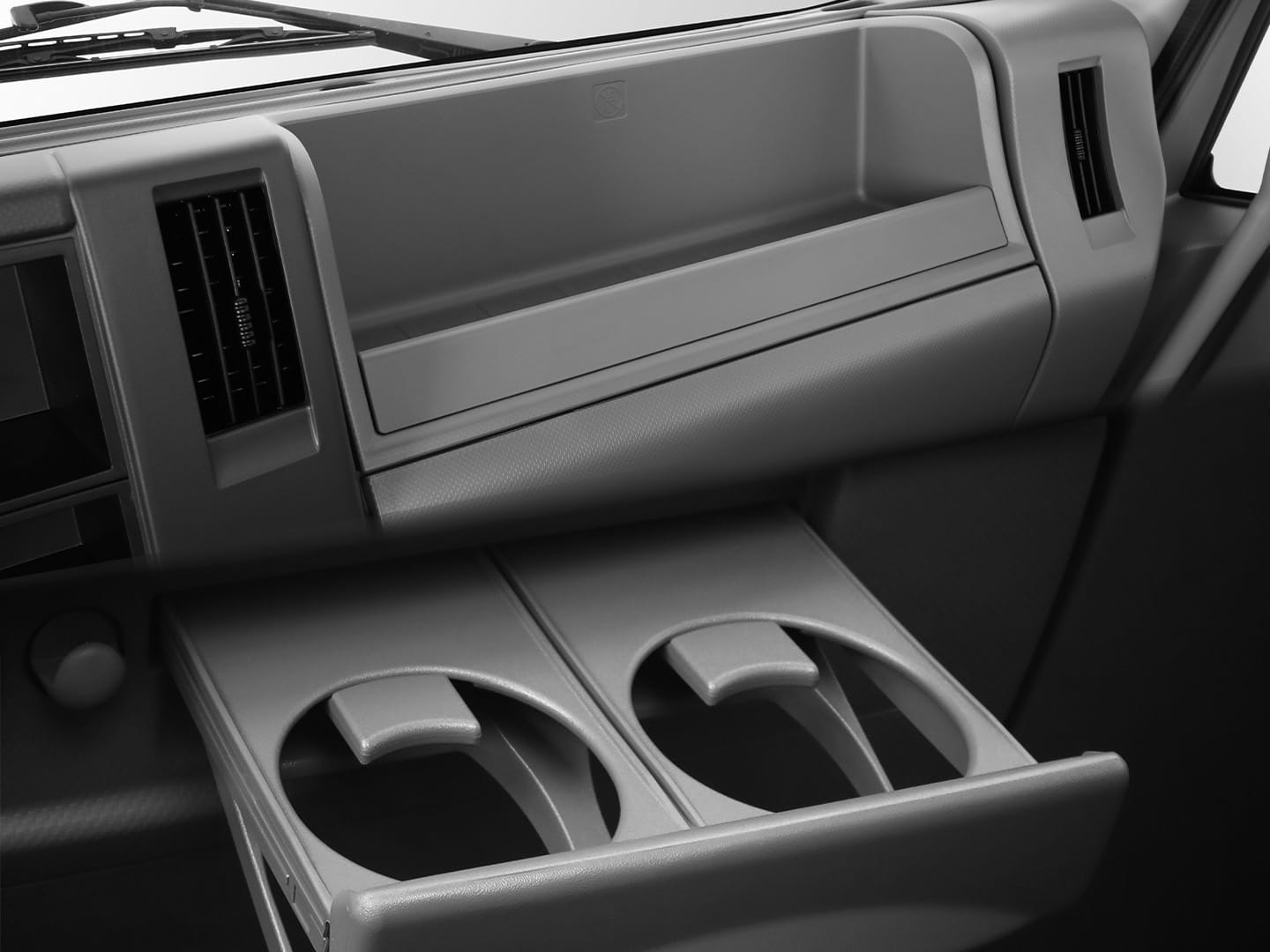

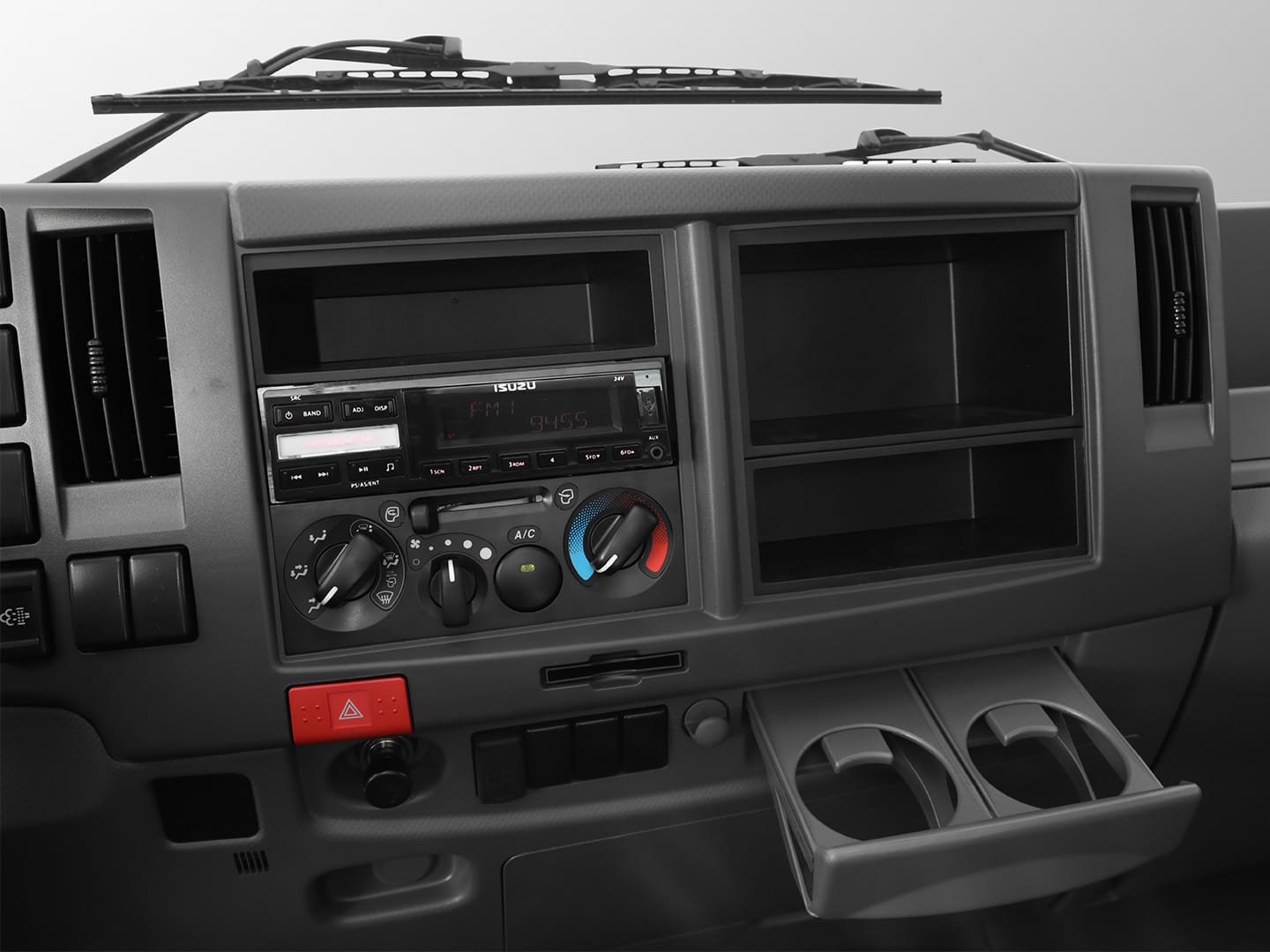

To be designed with ISUZU UNIVERSAL SPACE concept , ISUZU MASTER TRUCK posses Spacious cabin; ; The instrument panels is arranged reasonably and conveniently, provide a comfortable and safe journey for users
| Gross Vehicle Mass | Kg | 11,000 |
| Kerb Mass | Kg | 3,090 |
| Number of Seats | Persons | 03 |
| Fuel Tank | Liter | 100 |
| Overall Dimension (OL x OW x OH) | mm | 6,100 x 2,280 x 2,540 |
| Wheelbase (WB) | mm | 3,410 |
| Front – Rear Tread (AW / CW) | mm | 1,795 / 1,660 |
| Ground Clearance (HH) | mm | 210 |
| Front – Rear Overhang (FOH/ROH) | mm | 1,150 / 1,540 |
| Model | 4HK1E5S | |

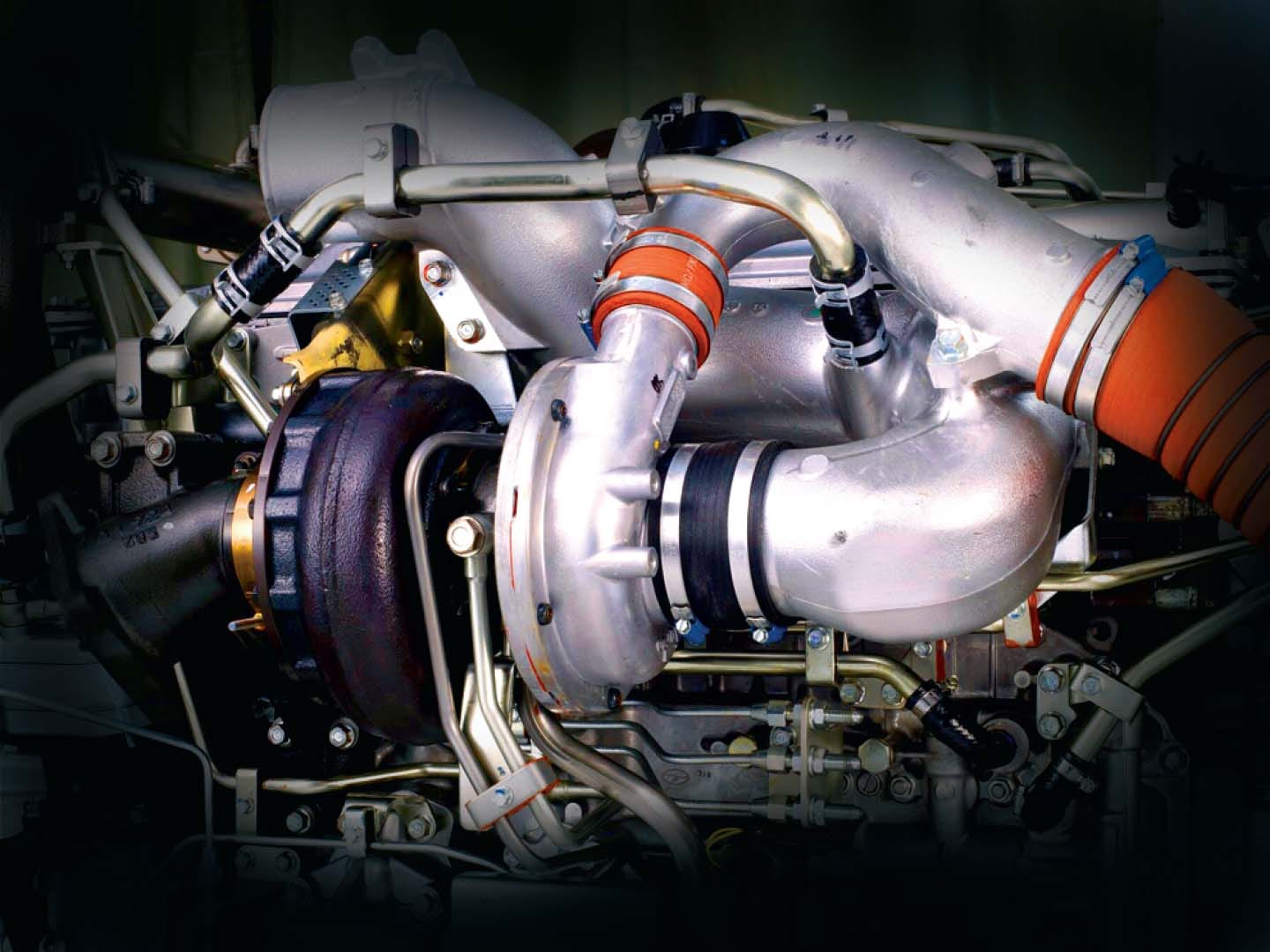

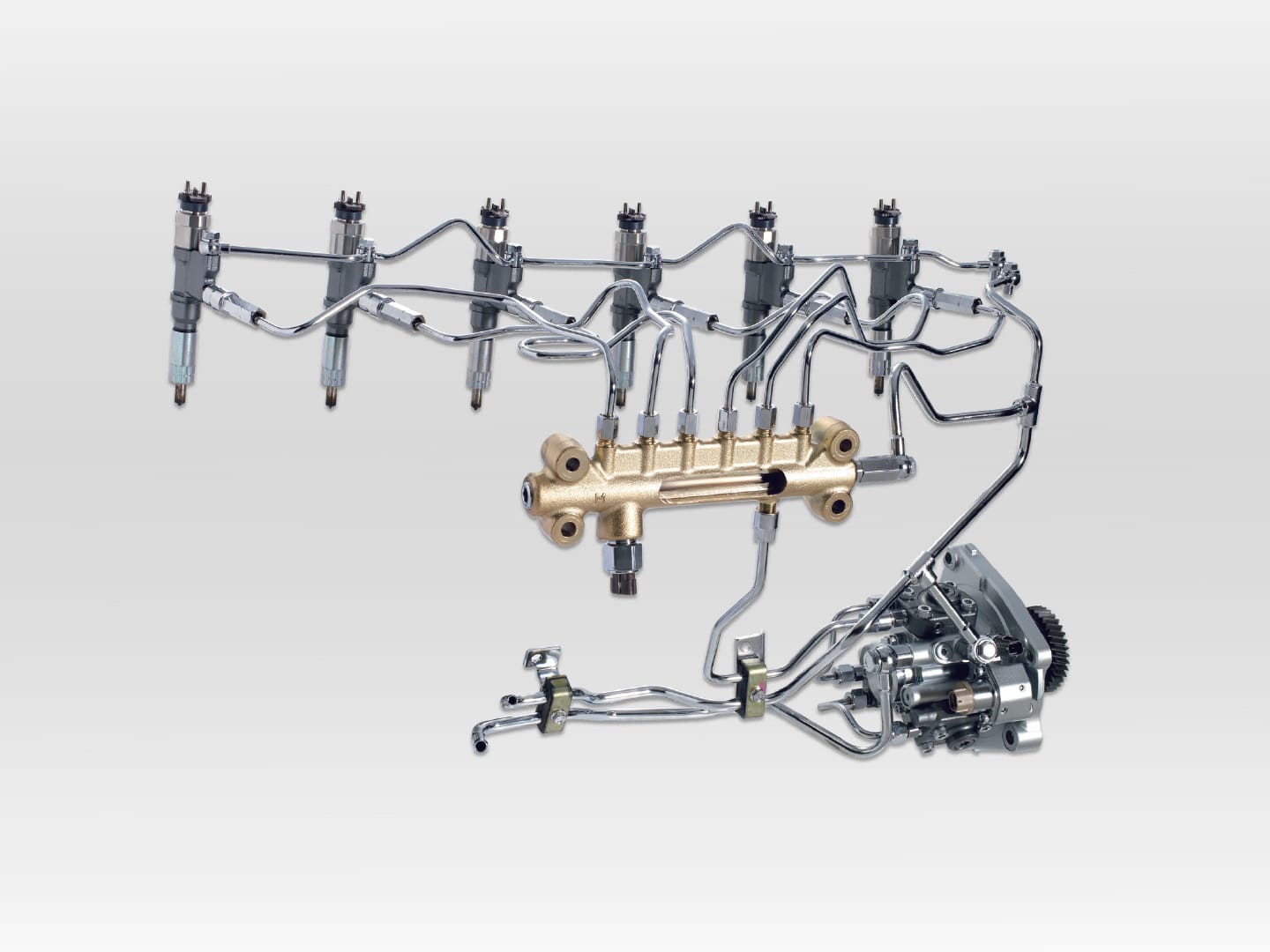

| Type | Common rail, turbo – intercooler | |
| Emission Control | Euro 5 | |
| Displacement | cc | 5,193 |
| Max. Power | Ps(kW) / rpm | 205 (150) / 2,600 |
| Max. Torque | N.m(kgf.m) / rpm | 637 (65) /1,600 |
| Transmission | MZW6P 6 Forward & 1 Reverse |
|
| PTO | Standard |
| Max Speed | Km/h | 100 |
| Gradeability | % | 42 |
| Min Turning Radius | m | 5.7 |
| Steering System | Recirculating ball with hydraulic assisted |
| Suspension System Front – Rear | Dependent, leaf springs, shock absorber |
| Brake System Front – Rear | Drum, Air-over hydraulic dual circuit |
| Tire Size Front – Rear | Standard: 8.25-16 18PR (Lug) |
| Generator | 24V-50A |
| Battery | 12V-70(Ah) x2 |
