| Gross vehicle mass | 23,830 (Kg) |
| Gross combination mass | 48,000 (Kg) |
| Max towed weight designed / authorized | 40,000 / 38,850 (Kg) |
| Max. Power | 380 (279) / 1,800 Ps(Kw)/rpm |
| Max. Torque | 1,765/1,200~1,500 Nm/rpm |
| Emission standard | Euro 5 |
| Manufacturer name | QINGLING MOTORS CO., LTD |
| Manufacturer address | No.1 Xiexing Road, Zhong Liang Shan, Jiu Long Po District 400052, ChongQing (China) |
| Origin | China |
| Suggested retail price | 1,698,840,000 VND |

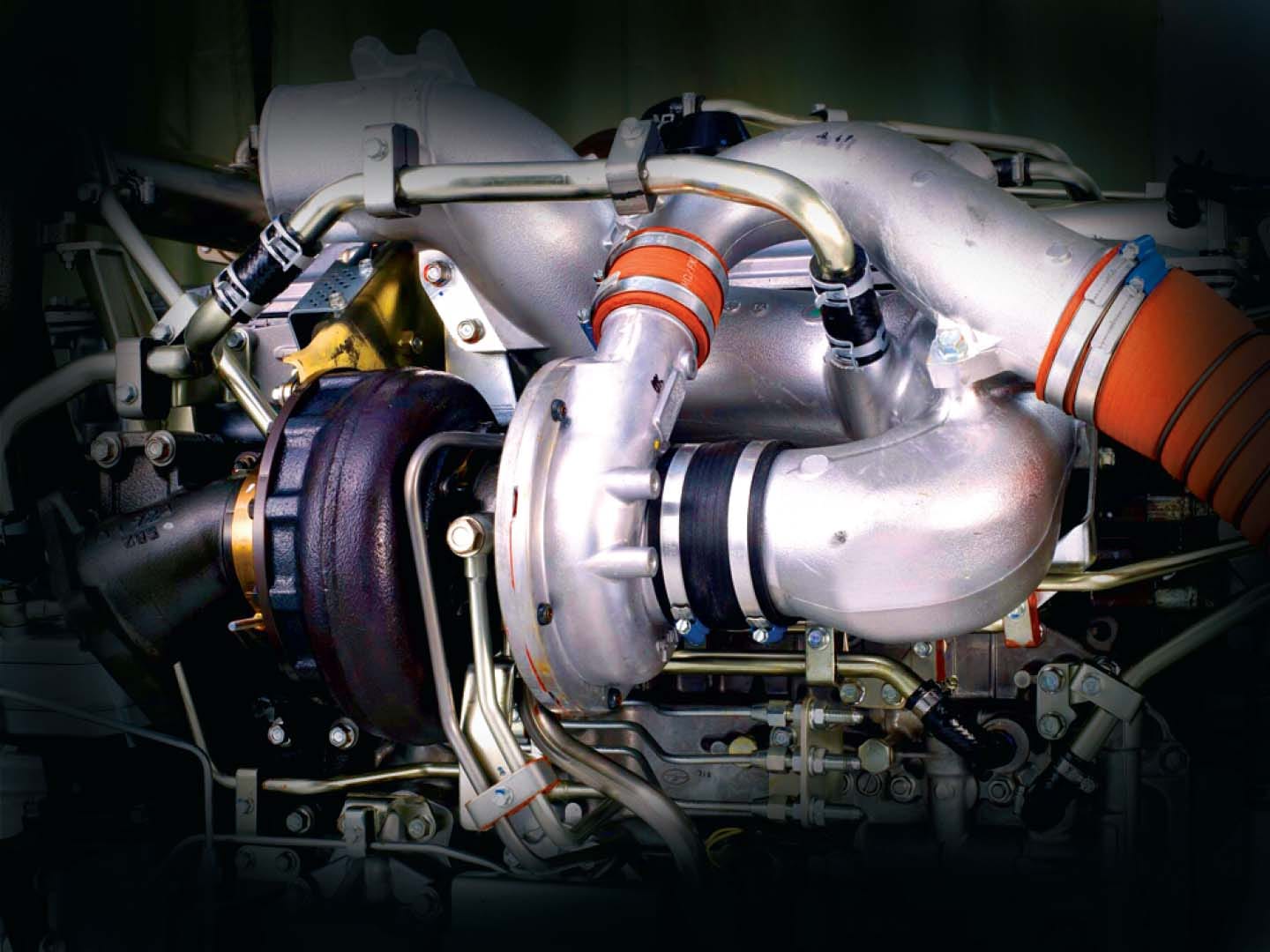

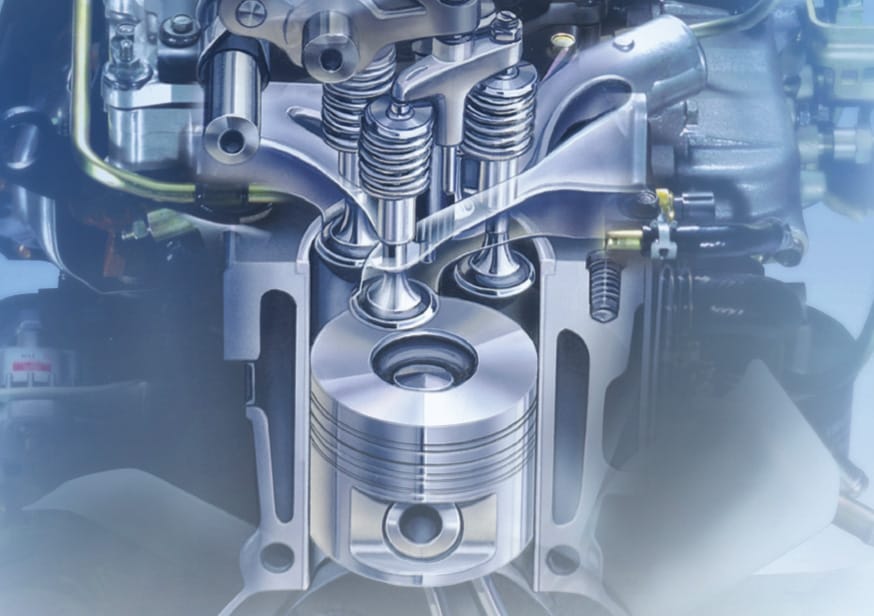

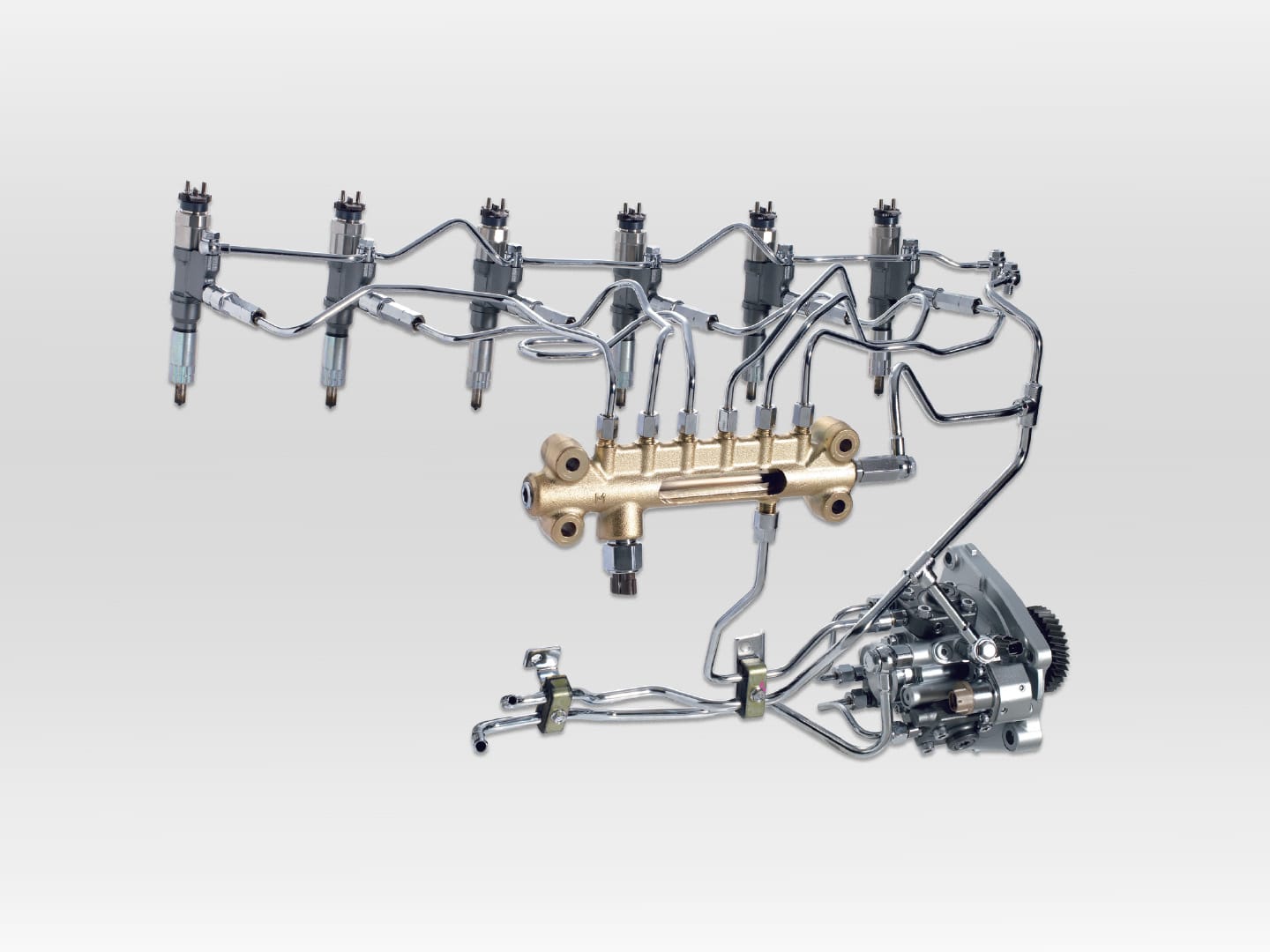

Fuel efficiency is the outstanding features of ISUZU engine, which is always focuses in any ISUZU engine innovation and contributing to optimizing the benefits of customers.
Spacious cabin typical design of Isuzu trucks to provide more space; while increasing the size of the rear body to help carry more goods.

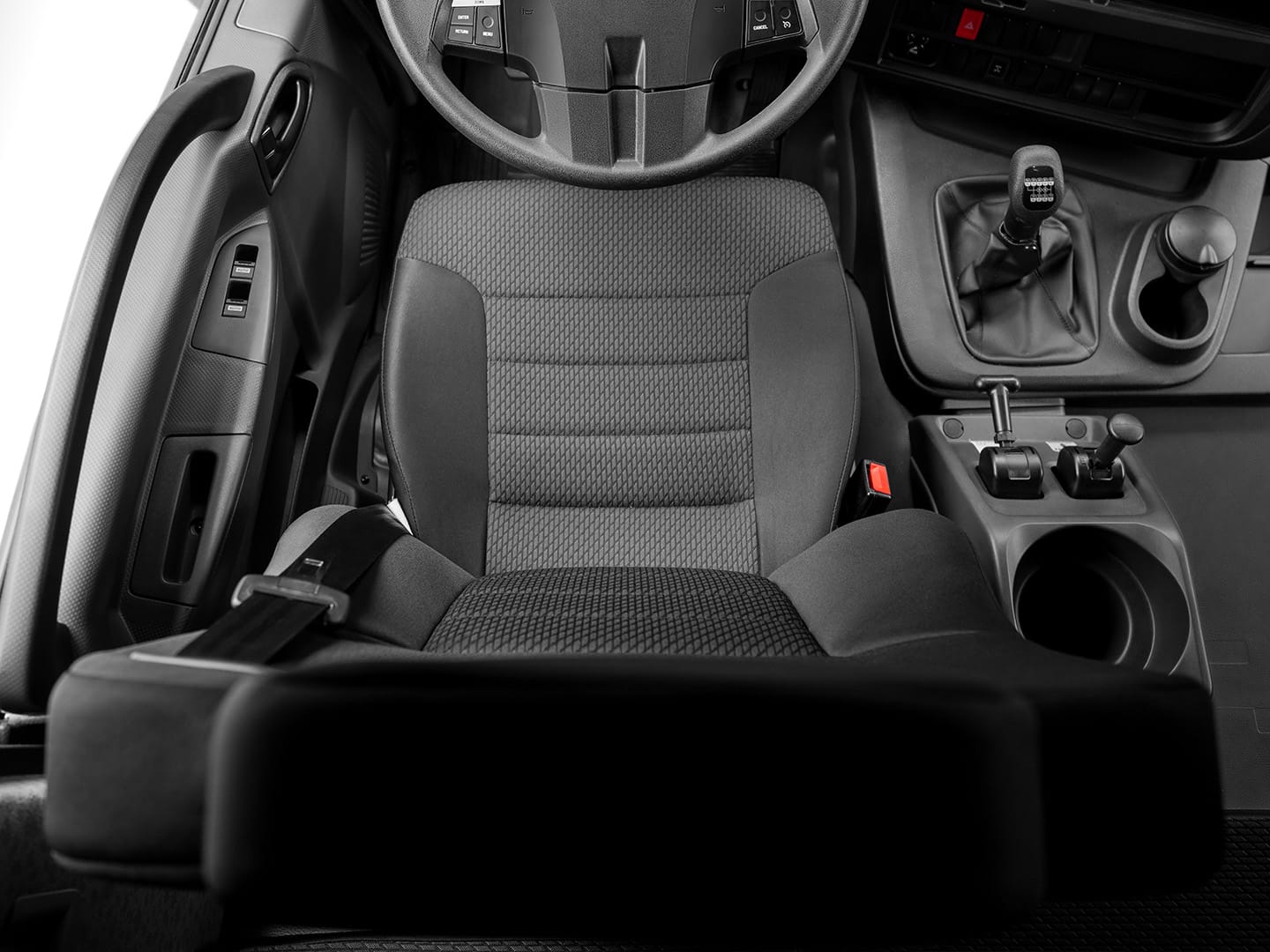

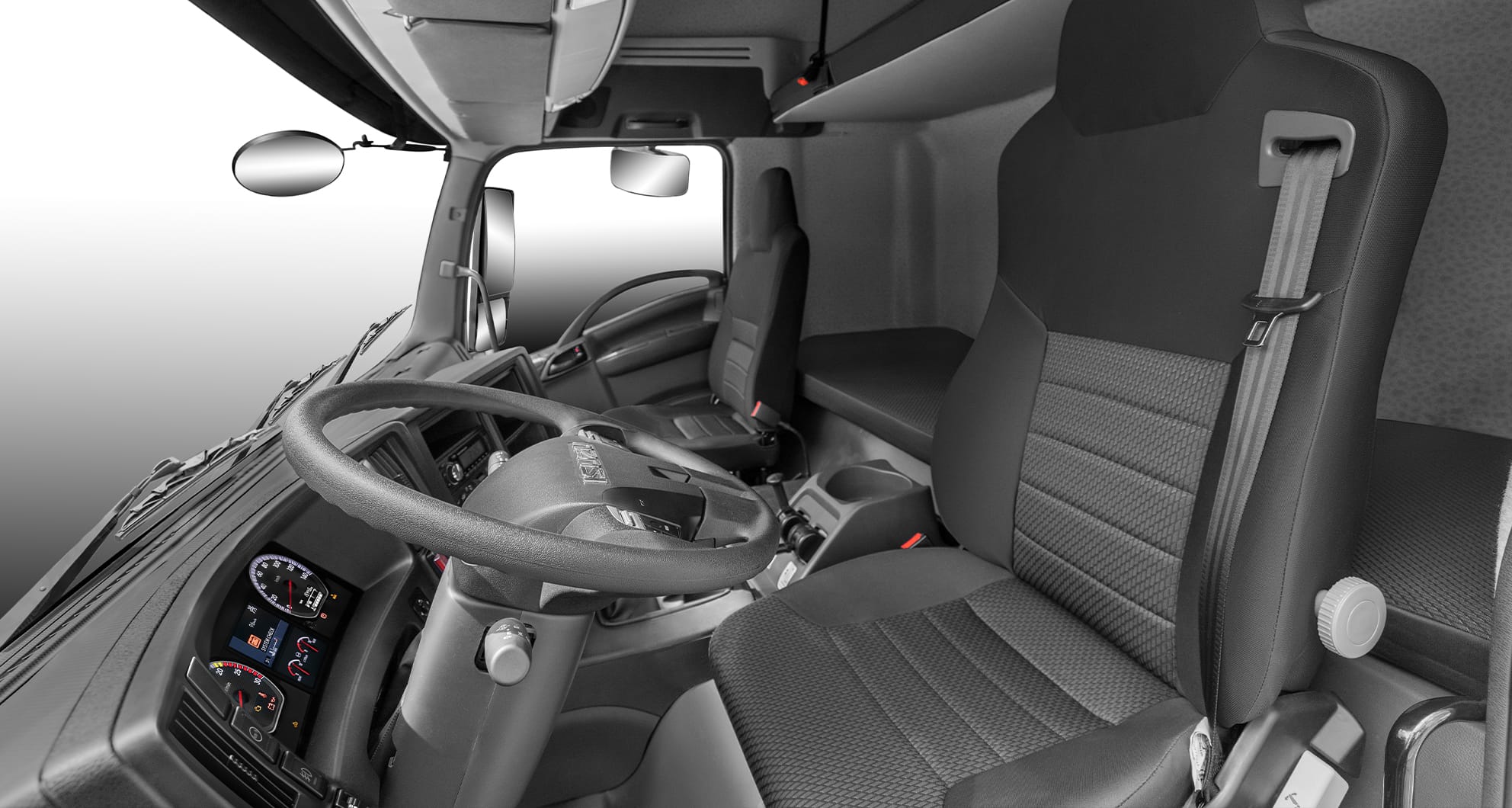

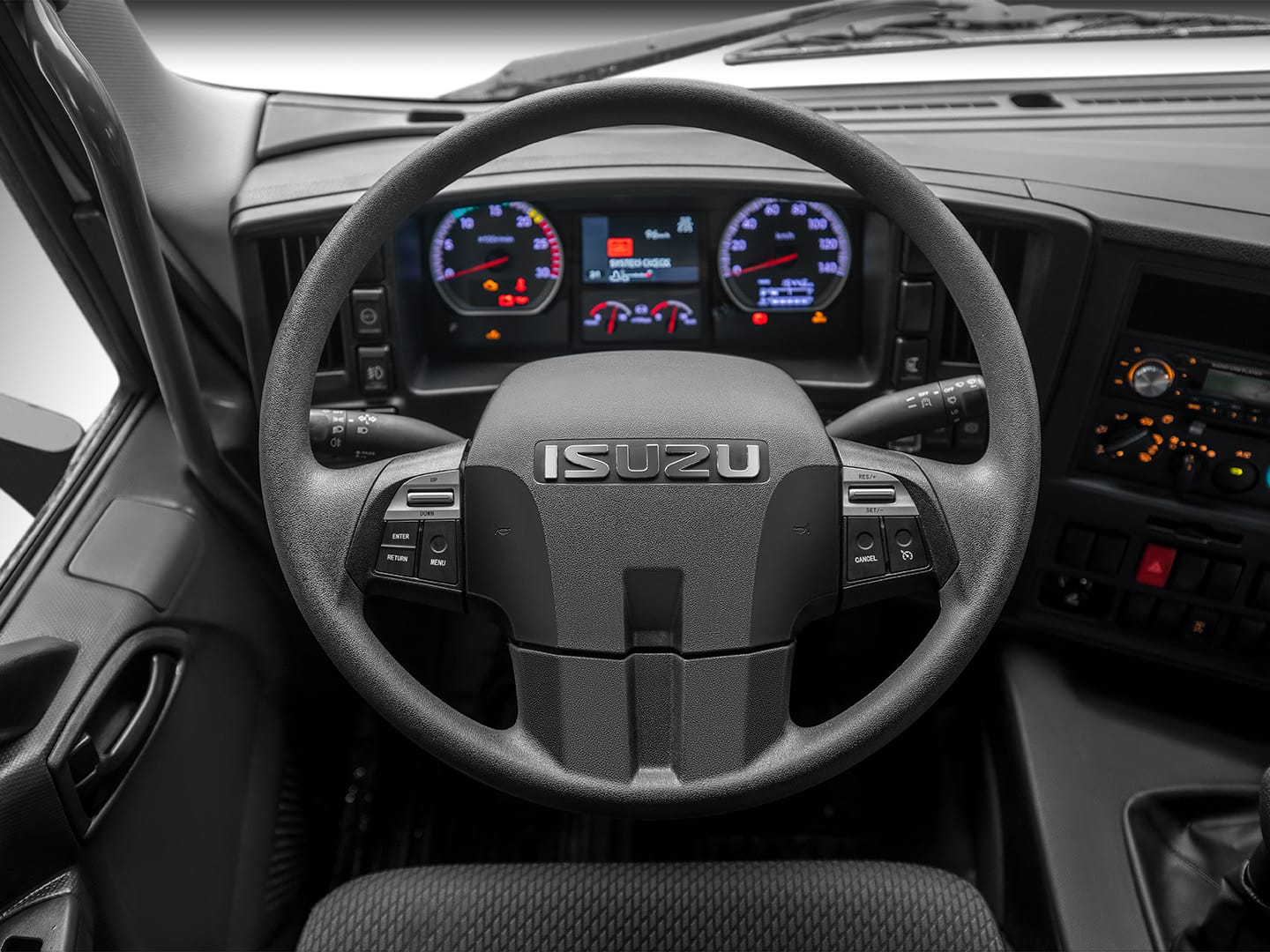

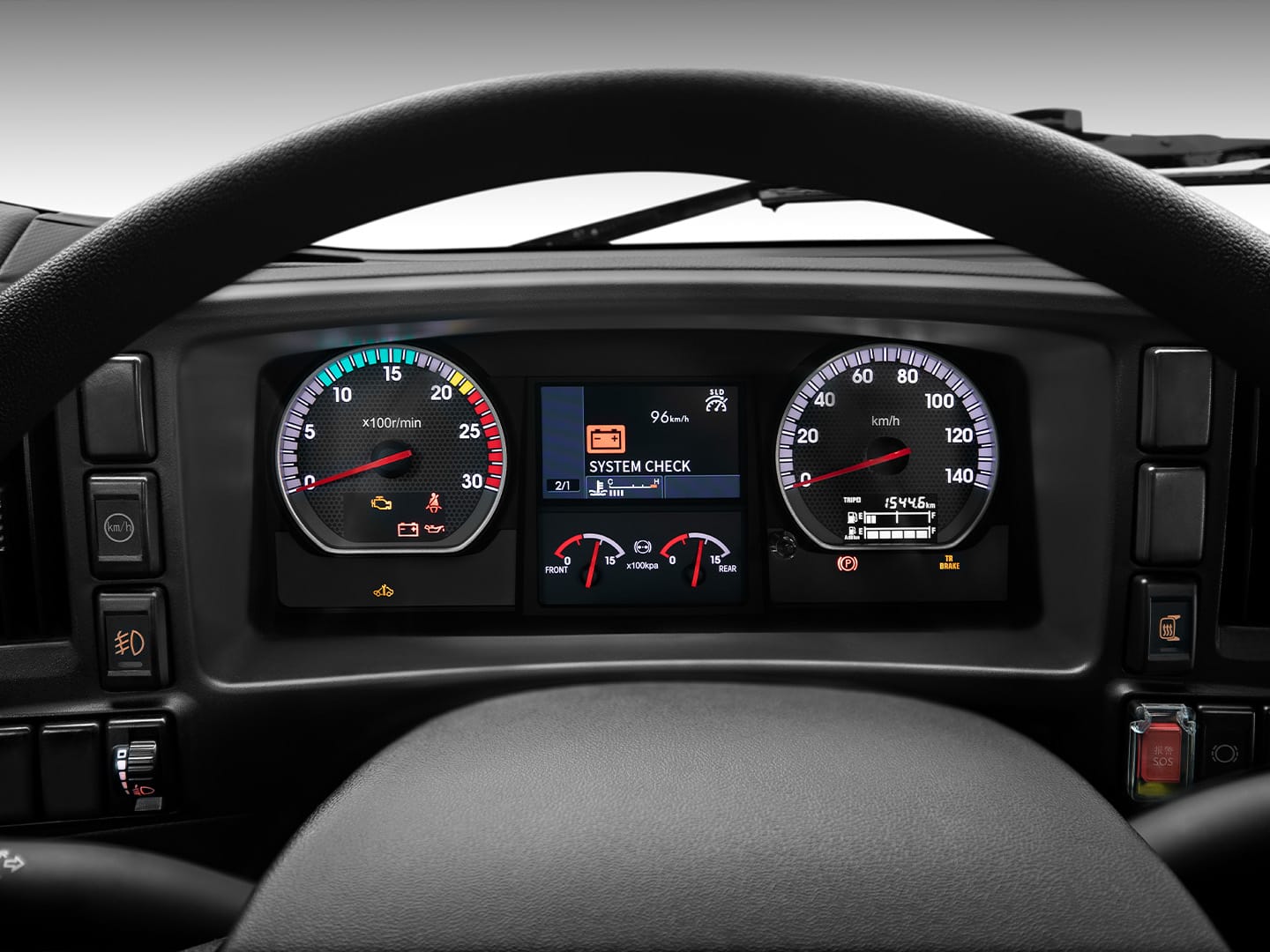

To be designed with ISUZU UNIVERSAL SPACE concept , ISUZU MASTER TRUCK posses Spacious cabin; ; The instrument panels is arranged reasonably and conveniently, provide a comfortable and safe journey for users
| Gross vehicle mass | Kg | 23,830 |
| Gross combination mass | Kg | 48,000 |
| Kerb mass | Kg | 8,850 |
| Max towed weight designed / authorized | Kg | 40,000/38,850 |
| No. of seats | 2 | |
| Fuel tank capacity | Litter | 600 |
| Ure tank capacity | Litter | 40 |
| Overall dimension | mm | 6,895 x 2,500 x 3,970 |
| Wheelbase | mm | 3,385 + 1,370 |
| Front – rear tread | mm | 2,065 / 1,875 |
| Model | 6UZ1-TCG50 | |
| Type | 4 stroke, 6 cylinders, in line, turbo charged – intercooler | |
| Emission standard | EURO 5 | |
| Bore x stroke | mm | 147 x 154 |
| Displacement | cc | 9,839 |
| Max. Power | PS(kW)/rpm | 380(279)/1,800 |
| Max. torque | Nm/rpm | 1,765/1,200~1,500 |
| Transmission |
ZF16 (16S2030TO)
16 forwards, 2 reverse
|
|
| Final gear ratio | 3.909 | |
| Electric axle shift | With | |
| Driving system | 6×4 |
| Steering system | Recirculating ball with hydraulic assisted |
| Suspension system front – rear | Leaf springs, shock absorber |
| Brake system front – rear | Full air brake, drum type |
| Tire size front – rear | 12R22.5 – 18PR |
| Generator | 24V-60A |
| Battery | 12V-120Ah x 02 |
| Driver air seat | With |
| Center door lock | With |
| Power windows | With |

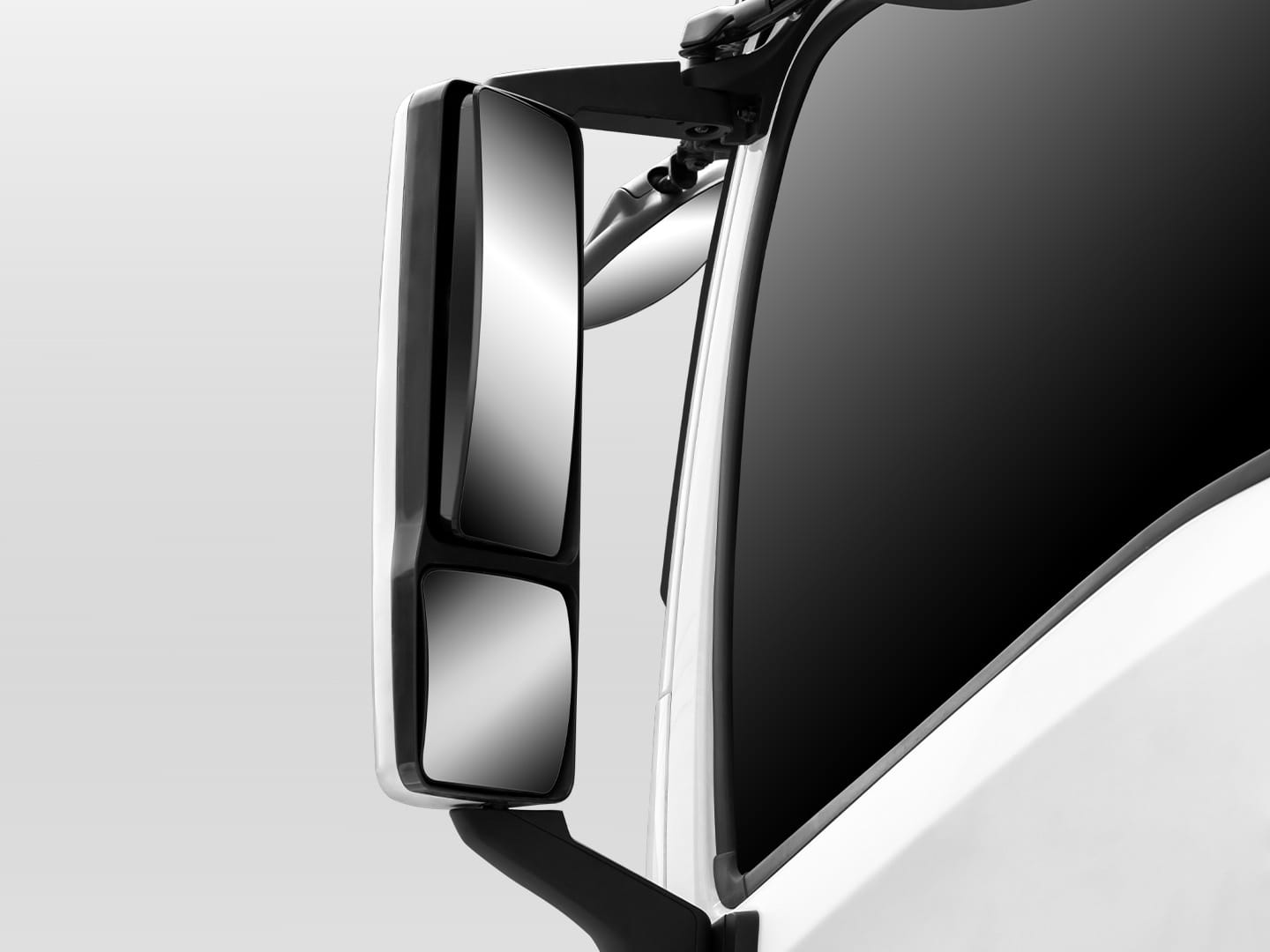

| Electric rear mirror with drying function | With |

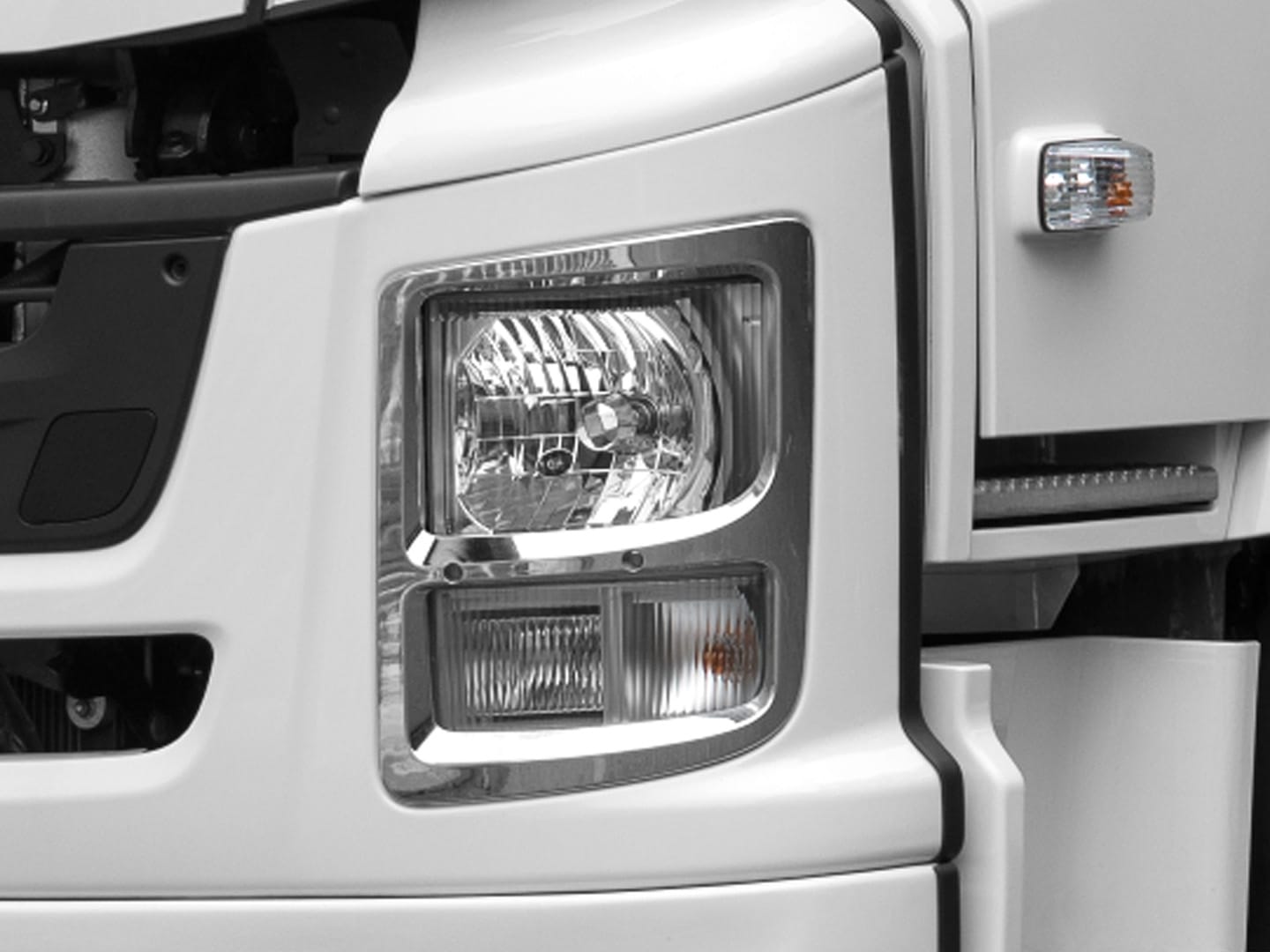

| Headlamp leveling | With |
| Air conditioner | With |
| USB-MP3, AM/FM Radio | With |
| USB charger | With |
| Double-deck berth | With |

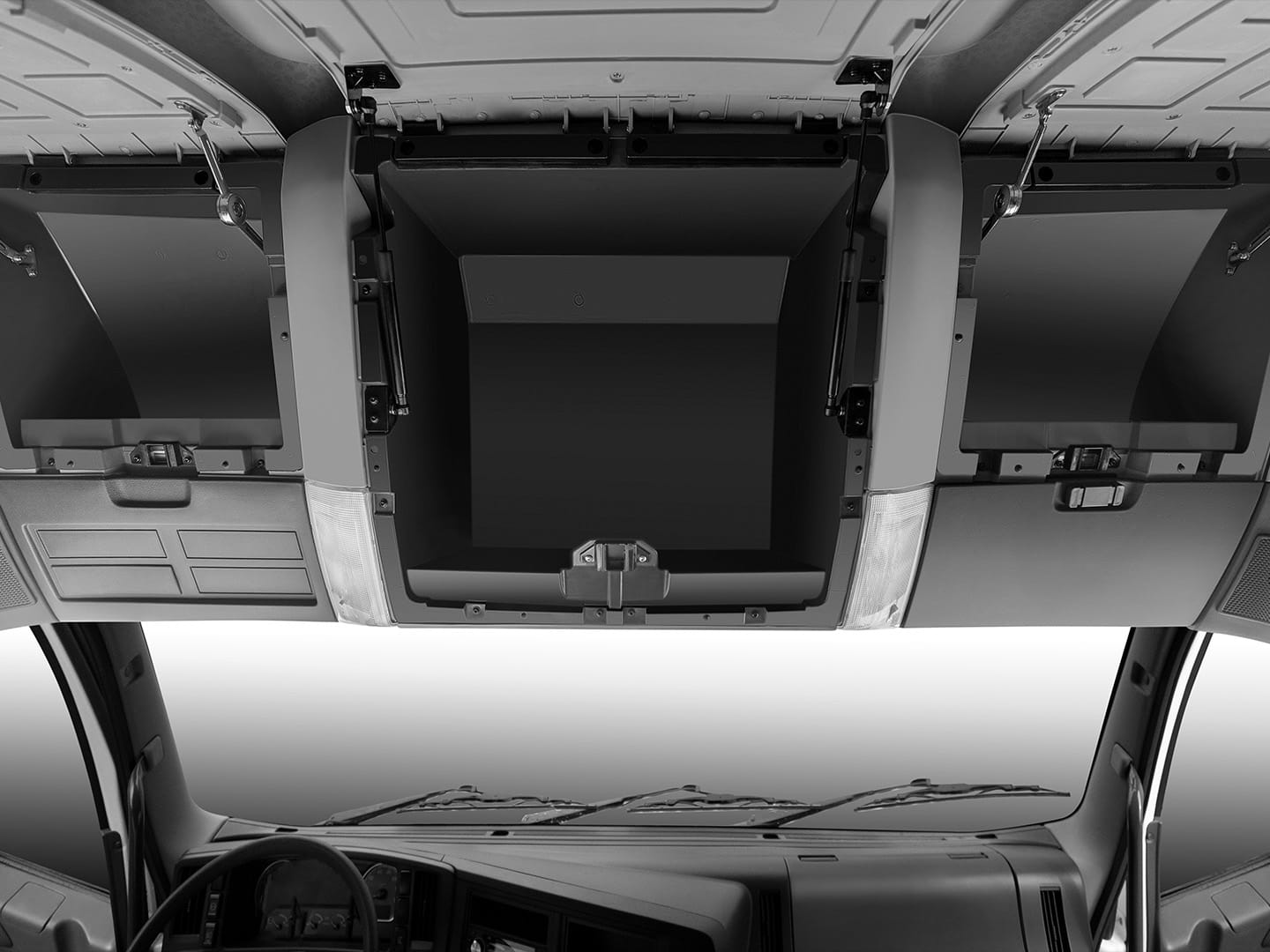

| Overhead storage | With |
| Bedside table | With |
| Cabin room lamp | With |
| Reading lamp | With |
| ABS | With |
| Cruise control | With |
| Speed limit | With |
| 3-points seatbelts | With |
| Exhaust brake | With |
| Trailer parking brake | With |
