ISUZU - ACCOMPANYING WITH FLEET CUSTOMER

ISUZU base trucks, equipped with durable engines, fuel efficiency, and stable performance, are trusted by many businesses for mounting refrigerated and insulated cargo boxes. Thanks to this combination, customers can flexibly select the most suitable body type for transporting temperature-sensitive goods such as food, seafood, or pharmaceuticals.

Freezer

BASIC SPECIFICATION
AC cabin		Standard
Engine		4JH1E5NC
Max Output	Ps(kW)/rpm	120 (88) / 2,900
Tire size (Front / Rear)		7.00-15 12PR
MASS
Gross vehicle mass	kg	4,990
Payload	kg	1,990
DIMENSION
Overall OAL x OW x OH	mm	6,240 x 1,950 x 2,850
Out side body dimension (LxWxH)	mm	4,450 x 1,950 x 1,950
Inside body dimension (LxWxH)	mm	4,270 x 1,810 x 1,770
FREEZER SYSTEM
Freezer body		Thermal Master T-2500 (Korea)
Max cold temperatur	°C	-18

BASIC SPECIFICATION
AC cabin		Standard
Engine		4JH1E5NC
Max Output	Ps(kW)/rpm	120 (88) / 2,900
Tire size (Front / Rear)		7.00-15 12PR
MASS
Gross vehicle mass	kg	5,500
Payload	kg	2,490
DIMENSION
Overall OAL x OW x OH	mm	6,240 x 1,950 x 2,850
Out side body dimension (LxWxH)	mm	4,450 x 1,950 x 1,950
Inside body dimension (LxWxH)	mm	4,270 x 1,810 x 1,770
FREEZER SYSTEM
Freezer body		Thermal Master T-2500 (Korea)
Max cold temperatur	°C	-18

BASIC SPECIFICATION
AC cabin		Standard
Engine		4JH1E4NC
Max Output	Ps(kW)/rpm	120 (88) / 2,900
Tire size (Front / Rear)		7.00-15 12PR
MASS
Gross vehicle mass	kg	4,990
Payload	kg	2,200
DIMENSION
Overall OAL x OW x OH	mm	5,490 x 1,950 x 2,850
Out side body dimension (LxWxH)	mm	3,700 x 1,870 x 1,950
Inside body dimension (LxWxH)	mm	3,520 x 1,810 x 1,780
FREEZER SYSTEM
Freezer body		Thermal Master T-1400 (Korea)
Max cold temperatur	°C	-18

Basic specification
AC cabin		standard
Engine		6HK1E4SC
Max Output	Ps(kW)/rpm	280(206) / 2,400
Tire size (Front / Rear)		11.00-R20
MASS
Gross vehicle mass	kg	24,000
Payload	kg	13,200
DIMENSION
Overall OAL x OW x OH	mm	11,250 x 2,500 x 3,830
Out side body dimension (LxWxH)	mm	8,500 x 2,500 x 2,550
Inside body dimension (LxWxH)	mm	8,250 x 2,320 x 2,310
Freezer system
Freezer body		THERMO KING SB-230 (14950W)
Max cold temperatur	C. Degree	-18

BASIC SPECICATION
AC cabin		Standard
Engine		6HK1E4SC
Max Output	Ps(kW)/rpm	280(206) / 2400
Tire size (Front / Rear)		11.00-R20
WEIGHT
Gross vehicle mass	kg	24,000
Payload	kg	13,700
DIMENSION
Overall Dimension (L x W x H)	mm	9,900 x 2,500 x 3,830
Out side body dimension (L x W x H)	mm	7,700 x 2,500 x 2,550
Inside body dimension (L x W x H)	mm	7,450 x 2,320 x 2,310
FREEZER SYSTEM
Freezer body		THERMO MASTER G42SE (8139W)/T-5100SE (7500W)
Max. cold temperature	C. Degree	-18

Basic specification
AC cabin		standard
Engine		6HK1E4NC
Max Output	Ps(kW)/rpm	241(177) / 2,400
Tire size (Front / Rear)		10.00-R20
MASS
Gross vehicle mass	kg	15,700
Payload	kg	7,700
DIMENSION
Overall OAL x OW x OH	mm	9,900 x 2,500 x 3,830
Out side body dimension (LxWxH)	mm	7,700 x 2,500 x 2,550
Inside body dimension (LxWxH)	mm	7,450 x 2,320 x 2,310
Freezer system
Freezer body		THERMO MASTER T-3500 (6800W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		6HK1E4NC
Max Output	Ps(kW)/rpm	241(177) / 2,400
Tire size (Front / Rear)		10.00-R20
MASS
Gross vehicle mass	kg	15,730
Payload	kg	7,430
DIMENSION
Overall OAL x OW x OH	mm	9,270 x 2,500 x 3,830
Out side body dimension (LxWxH)	mm	7,100 x 2,500 x 2,550
Inside body dimension (LxWxH)	mm	6,850 x 2,320 x 2,310
Freezer system
Freezer body		THERMO MASTER G42SE (8139W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		4HK1E4NC
Max Output	Ps(kW)/rpm	190(140) / 2,600
Tire size (Front / Rear)		8.25-16 18PR
MASS
Gross vehicle mass	kg	11,000
Payload	kg	5,850
DIMENSION
Overall OAL x OW x OH	mm	8,670 x 2,300 x 3,380
Out side body dimension (LxWxH)	mm	6,700 x 2,300 x 2,280
Inside body dimension (LxWxH)	mm	6,470 x 2,120 x 2,065
Freezer system
Freezer body		THERMO MASTER T-3500 (6800W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		4HK1E4NC
Max Output	Ps(kW)/rpm	190(140) / 2,600
Tire size (Front / Rear)		8.25-16 18PR
MASS
Gross vehicle mass	kg	11,000
Payload	kg	6,000
DIMENSION
Overall OAL x OW x OH	mm	7,760 x 2,300 x 3,380
Out side body dimension (LxWxH)	mm	5,900 x 2,300 x 2,280
Inside body dimension (LxWxH)	mm	5,670 x 2,120 x 2,065
Freezer system
Freezer body		THERMO MASTER T-3000 (5459W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		4HK1E4NC
Max Output	Ps(kW)/rpm	155(114) / 2,600
Tire size (Front / Rear)		8.25-16 14PR
MASS
Gross vehicle mass	kg	9,500
Payload	kg	5,350
DIMENSION
Overall OAL x OW x OH	mm	8,120 x 2,200 x 3,200
Out side body dimension (LxWxH)	mm	6,300 x 2,200 x 2,200
Inside body dimension (LxWxH)	mm	6,120 x 2,050 x 2,020
Freezer system
Freezer body		THERMO MASTER T-3500 (6800W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		4HK1E4NC
Max Output	Ps(kW)/rpm	155(114) / 2,600
Tire size (Front / Rear)		8.25-16 14PR
MASS
Gross vehicle mass	kg	9,500
Payload	kg	5,350
DIMENSION
Overall OAL x OW x OH	mm	7,570 x 2,200 x 3,200
Out side body dimension (LxWxH)	mm	5,750 x 2,200 x 2,200
Inside body dimension (LxWxH)	mm	5,570 x 2,050 x 2,020
Freezer system
Freezer body		THERMO MASTER T-3000 (5459W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		4JH1E4NC
Max Output	Ps(kW)/rpm	124(91) / 2,600
Tire size (Front / Rear)		7.50-16 14PR
MASS
Gross vehicle mass	kg	7,200 (7,500)
Payload	kg	3,490 (3,800)
DIMENSION
Overall OAL x OW x OH	mm	7,030 x 2,150 x 3,000
Out side body dimension (LxWxH)	mm	5,250 x 2,150 x 2,080
Inside body dimension (LxWxH)	mm	5,070 x 2,000 x 1,900
Freezer system
Freezer body		THERMO MASTER T-3000 (5459W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		4JH1E4NC
Max Output	Ps(kW)/rpm	124(91) / 2,600
Tire size (Front / Rear)		7.00-16 14PR
MASS
Gross vehicle mass	kg	4,990 (5,700)
Payload	kg	1,800 (2,490)
DIMENSION
Overall OAL x OW x OH	mm	6,320 x 1,950 x 2,850
Out side body dimension (LxWxH)	mm	4,550 x 1,950 x 1,950
Inside body dimension (LxWxH)	mm	4,370 x 1,800 x 1,780
Freezer system
Freezer body		THERMO MASTER T-2500 (4950W)/T-2600 (3860W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		4JH1E4NC
Max Output	Ps(kW)/rpm	105(77) / 3,200
Tire size (Front / Rear)		7.00-15 12PR
MASS
Gross vehicle mass	kg	5,500
Payload	kg	2,490
DIMENSION
Overall OAL x OW x OH	mm	6,240 x 1,950 x 2,850
Out side body dimension (LxWxH)	mm	4,450 x 1,950 x 1,950
Inside body dimension (LxWxH)	mm	4,270 x 1,810 x 1,770
Freezer system
Freezer body		THERMO MASTER T-2500 (2600W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		4JH1E4NC
Max Output	Ps(kW)/rpm	105(77) / 3,200
Tire size (Front / Rear)		7.00-15 12PR
MASS
Gross vehicle mass	kg	4,990
Payload	kg	2,200
DIMENSION
Overall OAL x OW x OH	mm	5,490 x 1,950 x 2,850
Out side body dimension (LxWxH)	mm	3,700 x 1,950 x 1,950
Inside body dimension (LxWxH)	mm	3,520 x 1,810 x 1,780
Freezer system
Freezer body		THERMO MASTER T-1400 (1900W)
Max cold temperatur	C. Degree	-18

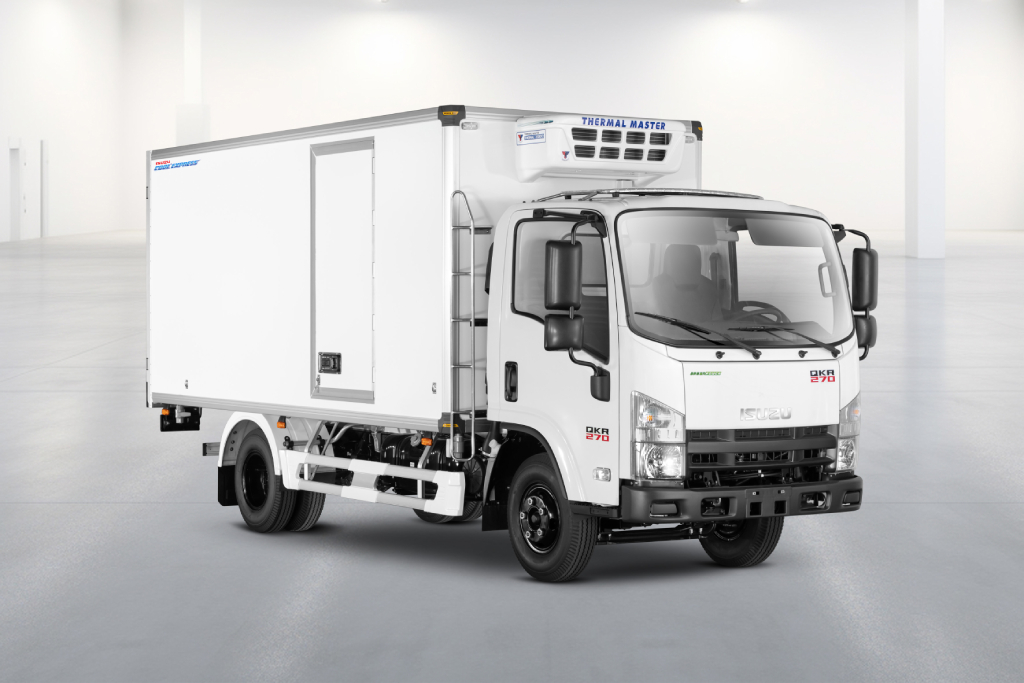

QMR77HE5A - QUYEN AUTO.DLAS
QMR77HE5 - QUYEN AUTO.DLAS
QLR77FE5 - QUYEN AUTO.DLAS
FVM34WE5
FVM34TE5

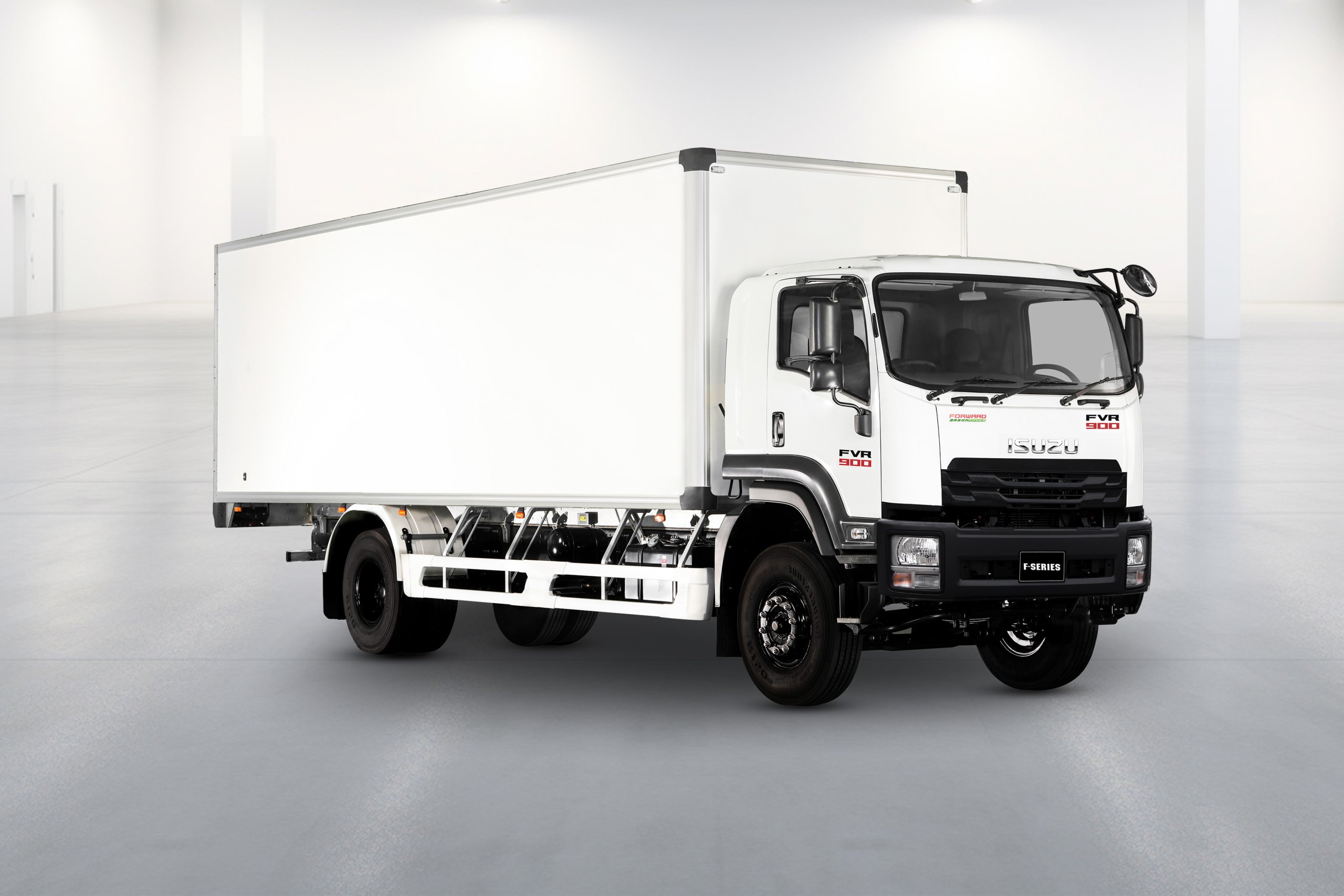

FVR34SE5

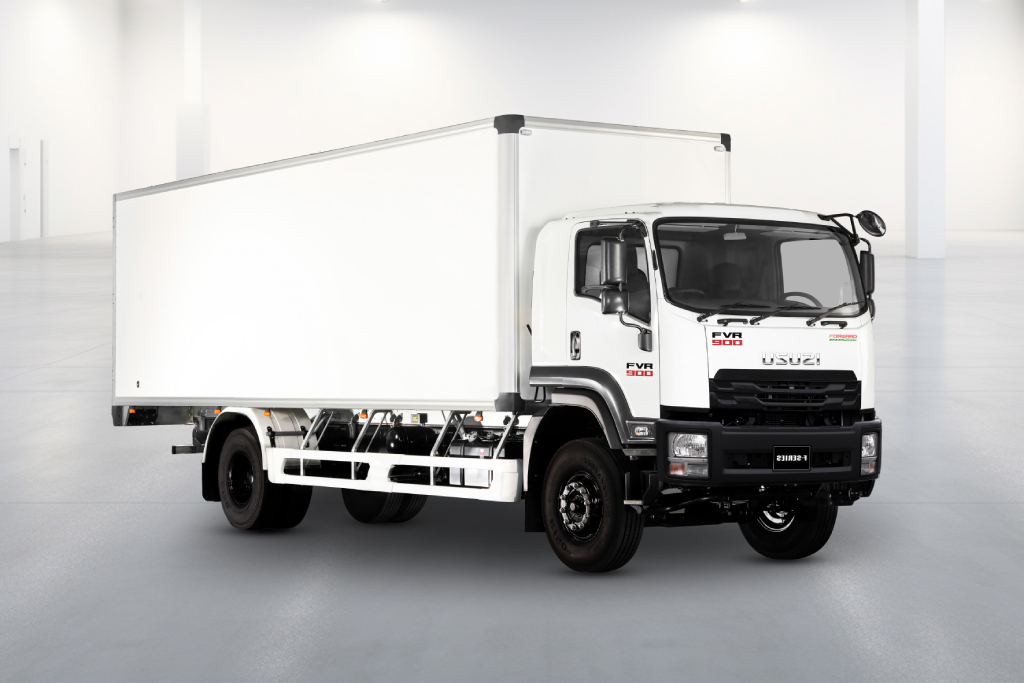

FVR34QE5
FRR90NE5
FRR90LE5
NQR75ME5
NQR75LE5

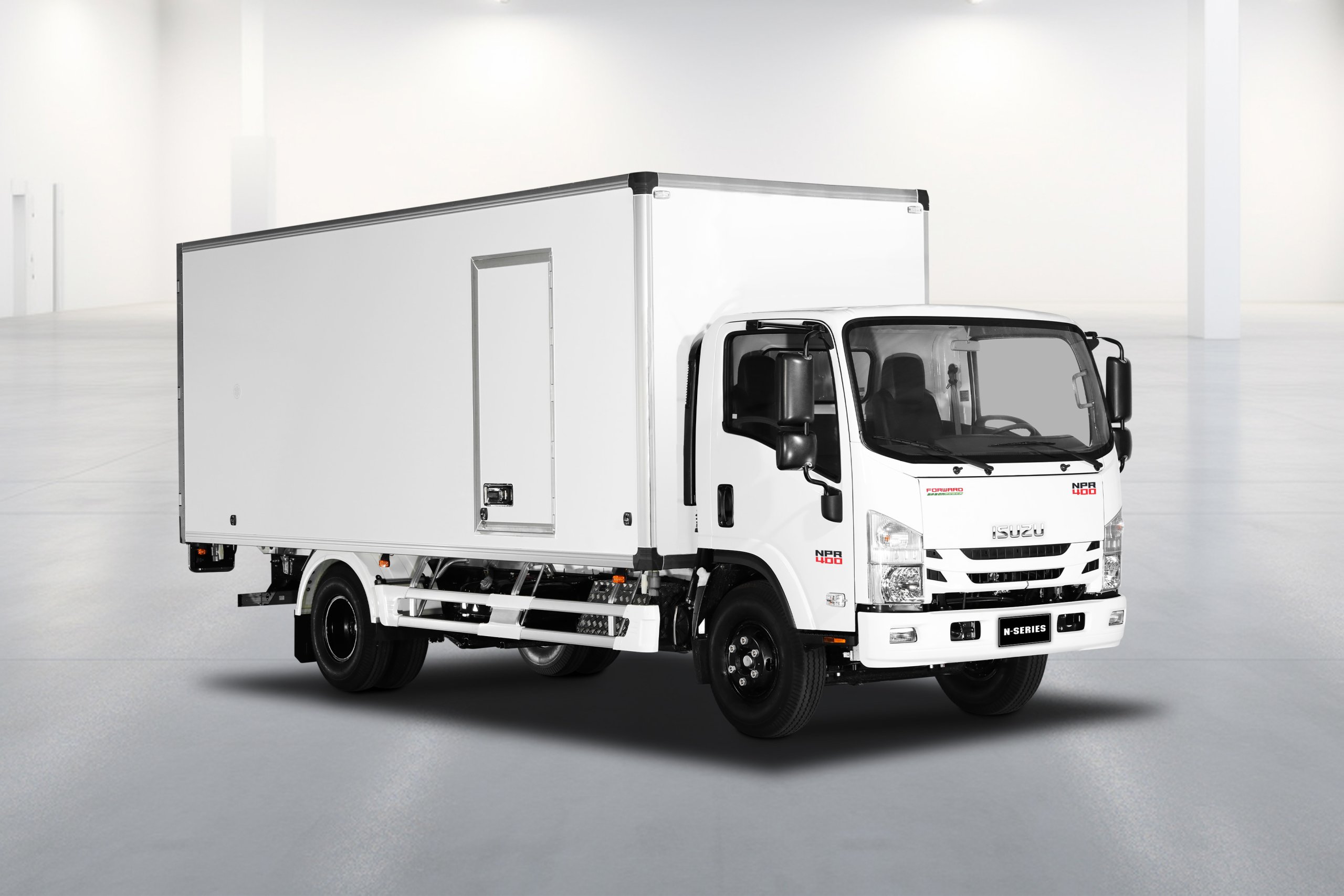

NPR85KE5

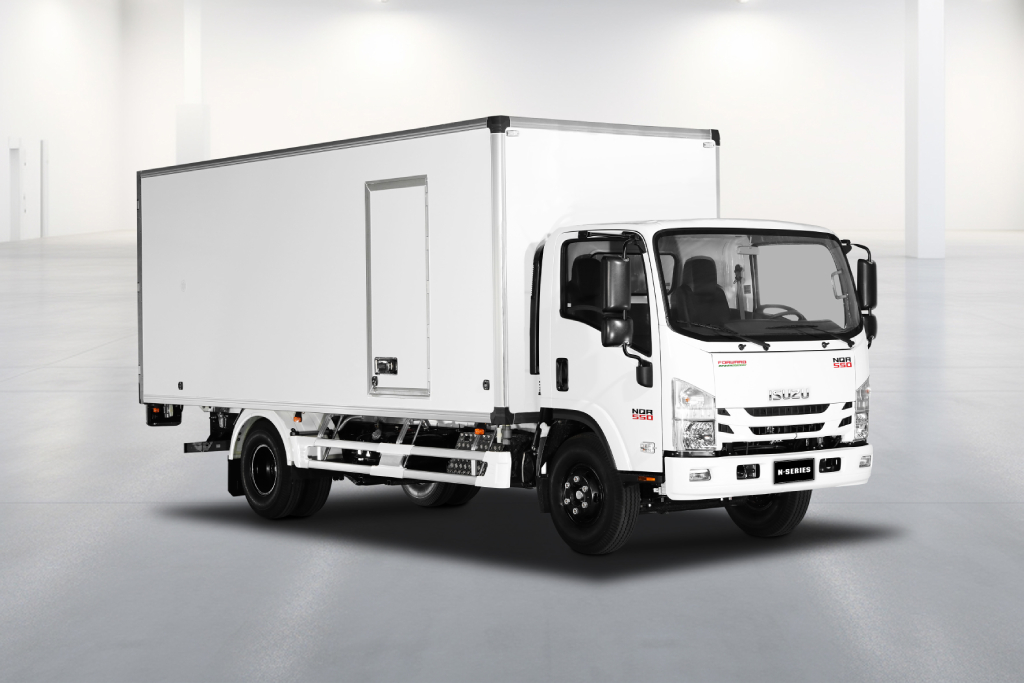

NMR85HE5

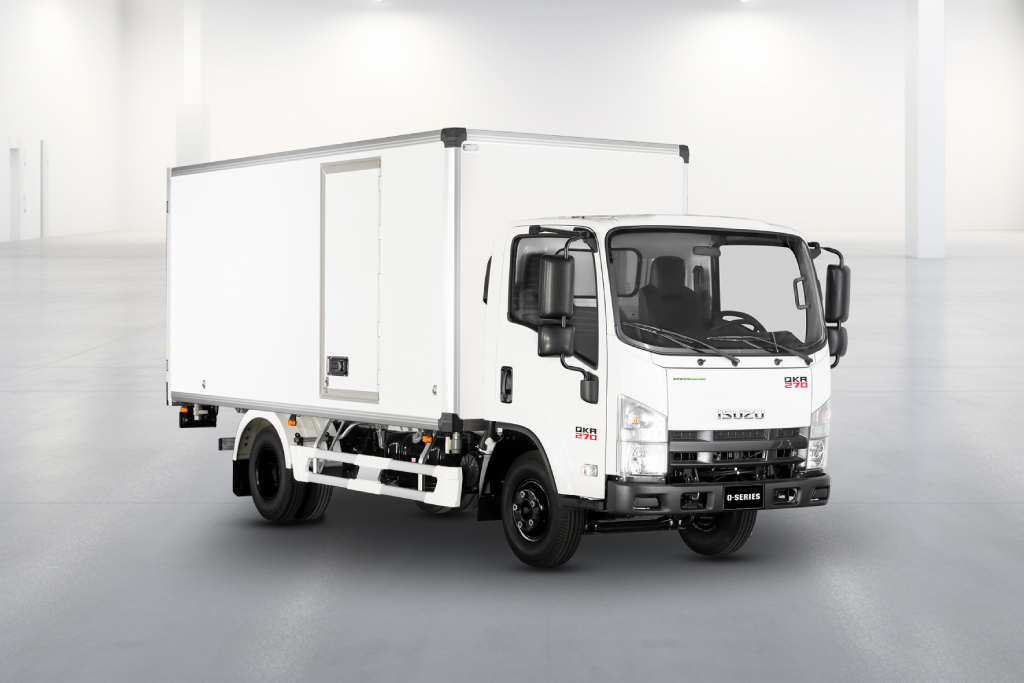

QKR QMR77HE5
QKR QLR77FE5

Chill

BASIC SPECIFICATION
AC cabin		Standard
Engine		6HK1E4SC
Max Output	Ps(kW)/rpm	280(206) / 2400
Tire size (Front / Rear)		11.00-R20
WEIGHT
Gross vehicle mass	KG	24,000
Payload	KG	13,950
DIMENSION
Overall Dimension (L x W x H)	mm	11,500 x 2,500 x 3,830
Out side body dimension (L x W x H)	mm	9,350 x 2,500 x 2,550
Inside body dimension (L x W x H)	mm	9,100 x 2,320 x 2,310

BASIC SPECIFICATION
AC cabin		Standard
Engine		6HK1E4SC
Max Output	Ps(kW)/rpm	280(206) / 2,400
Tire size (Front / Rear)		11.00-R20
WEIGHT
GVW	KG	24,000
Payload	KG	14,500
DIMENSION
Overall Dimension (L x W x H)	mm	9,900 x 2,500 x 3,820
Outside body dimension (L x W x H)	mm	7,700 x 2,500 x 2,550
Inside body dimension (L x W x H)	mm	7,450 x 2,320 x 2,310

Basic specification
AC cabin		standard
Engine		6HK1E4NC
Max Output	Ps(kW)/rpm	241(177) / 2,400
Tire size (Front / Rear)		10.00-R20
MASS
Gross vehicle mass	kg	15,700
Payload	kg	7,600
DIMENSION
Overall OAL x OW x OH	mm	9,860 x 2,500 x 3,830
Out side body dimension (LxWxH)	mm	7,700 x 2,500 x 2,550
Inside body dimension (LxWxH)	mm	7,450 x 2,320 x 2,310

Basic specification
AC cabin		standard
Engine		6HK1E4NC
Max Output	Ps(kW)/rpm	241(177) / 2,400
Tire size (Front / Rear)		10.00-R20
MASS
Gross vehicle mass	kg	15,300
Payload	kg	7,750
DIMENSION
Overall OAL x OW x OH	mm	9,270 x 2,500 x 3,830
Out side body dimension (LxWxH)	mm	7,100 x 2,500 x 2,550
Inside body dimension (LxWxH)	mm	6,850 x 2,320 x 2,310

Basic specification
AC cabin		standard
Engine		4HK1E4CC
Max Output	Ps(kW)/rpm	190(140) / 2,600
Tire size (Front / Rear)		8.25-16 18PR
MASS
Gross vehicle mass	kg	11,000
Payload	kg	5,900
DIMENSION
Overall OAL x OW x OH	mm	8,640 x 2,300 x 3,370
Out side body dimension (LxWxH)	mm	6,700 x 2,300 x 2,280
Inside body dimension (LxWxH)	mm	6,470 x 2,120 x 2,065

Basic specification
AC cabin		standard
Engine		4HK1E4CC
Max Output	Ps(kW)/rpm	190(140) / 2,600
Tire size (Front / Rear)		8.25-16 18PR
MASS
Gross vehicle mass	kg	11,000
Payload	kg	6,200
DIMENSION
Overall OAL x OW x OH	mm	7,730 x 2,300 x 3,380
Out side body dimension (LxWxH)	mm	5,900 x 2,300 x 2,280
Inside body dimension (LxWxH)	mm	5,670 x 2,120 x 2,065

Basic specification
AC cabin		standard
Engine		4HK1E4NC
Max Output	Ps(kW)/rpm	155(114) / 2,600
Tire size (Front / Rear)		8.25-16 14PR
MASS
Gross vehicle mass	kg	9,500
Payload	kg	5,350
DIMENSION
Overall OAL x OW x OH	mm	8,120 x 2,200 x 3,200
Out side body dimension (LxWxH)	mm	6,300 x 2,200 x 2,200
Inside body dimension (LxWxH)	mm	6,120 x 2,050 x 2,020

Basic specification
AC cabin		standard
Engine		4HK1E4NC
Max Output	Ps(kW)/rpm	155(114) / 2,600
Tire size (Front / Rear)		8.25-16 14PR
MASS
Gross vehicle mass	kg	9,500
Payload	kg	5,600
DIMENSION
Overall OAL x OW x OH	mm	7,570 x 2,200 x 3,200
Out side body dimension (LxWxH)	mm	5,750 x 2,200 x 2,200
Inside body dimension (LxWxH)	mm	5,570 x 2,050 x 2,020
Freezer system
Freezer body		THERMO MASTER T-3000 (5459W)
Max cold temperatur	C. Degree	-18

Basic specification
AC cabin		standard
Engine		4JH1E4NC
Max Output	Ps(kW)/rpm	124(91) / 2,600
Tire size (Front / Rear)		7.50-16 14PR
MASS
Gross vehicle mass	kg	7,500
Payload	kg	3,800
DIMENSION
Overall OAL x OW x OH	mm	7,030 x 2,150 x 3,000
Out side body dimension (LxWxH)	mm	5,250 x 2,150 x 2,080
Inside body dimension (LxWxH)	mm	5,070 x 2,000 x 1,900

Basic specification
AC cabin		standard
Engine		4JH1E4NC
Max Output	Ps(kW)/rpm	124(91) / 2,600
Tire size (Front / Rear)		7.00-16 14PR
MASS
Gross vehicle mass	kg	4,990 (6,000)
Payload	kg	1,950 (2,900)
DIMENSION
Overall OAL x OW x OH	mm	6,320 x 1,950 x 2,850
Out side body dimension (LxWxH)	mm	4,550 x 1,950 x 1,950
Inside body dimension (LxWxH)	mm	4,370 x 1,800 x 1,780

Basic specification
AC cabin		standard
Engine		4JH1E4NC
Max Output	Ps(kW)/rpm	105(77) / 3,200
Tire size (Front / Rear)		7.00-15 12PR
MASS
Gross vehicle mass	kg	5,500
Payload	kg	2,490
DIMENSION
Overall OAL x OW x OH	mm	6,240 x 1,950 x 2,850
Out side body dimension (LxWxH)	mm	4,400 x 1,870 x 1,950
Inside body dimension (LxWxH)	mm	4,270 x 1,810 x 1,770

Basic specification
AC cabin		standard
Engine		4JH1E4NC
Max Output	Ps(kW)/rpm	105(77) / 3,200
Tire size (Front / Rear)		7.00-15 12PR
MASS
Gross vehicle mass	kg	4,990
Payload	kg	2,250
DIMENSION
Overall OAL x OW x OH	mm	5,490 x 1,950 x 2,850
Out side body dimension (LxWxH)	mm	3,700 x 1,950 x 1,950
Inside body dimension (LxWxH)	mm	3,520 x 1,810 x 1,780

FVM34WE5

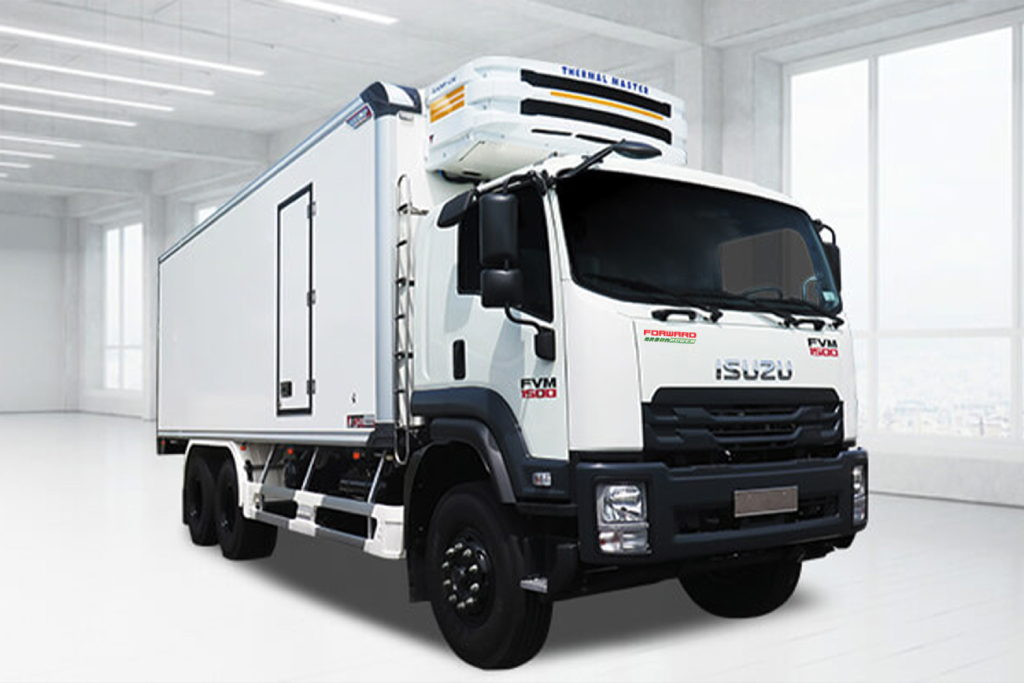

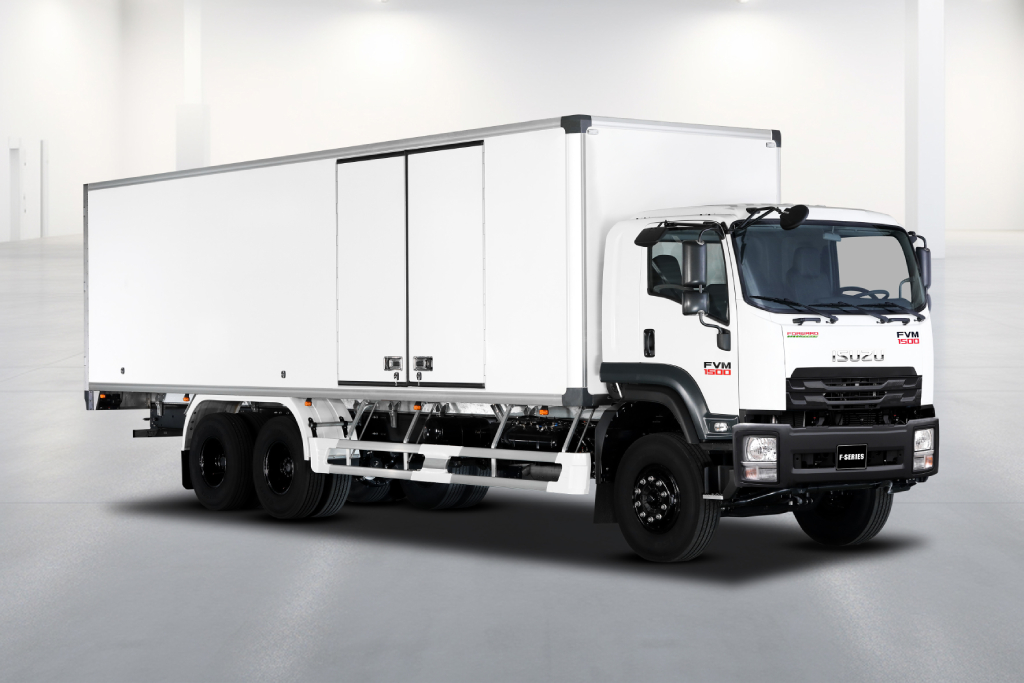

FVM34TE5

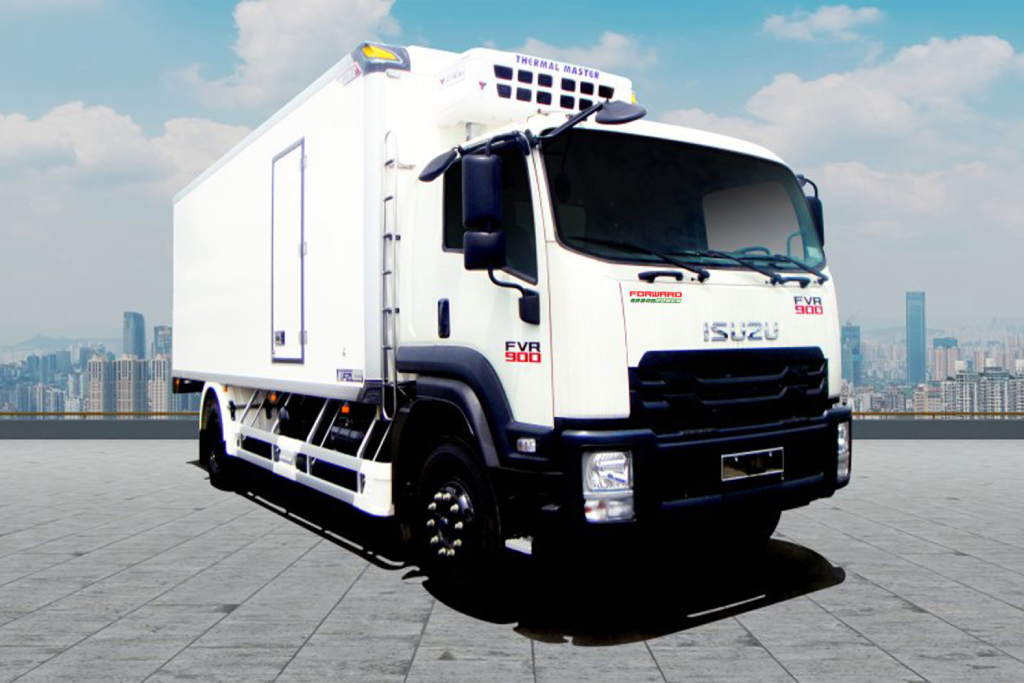

FVR34SE5
FVR34QE5

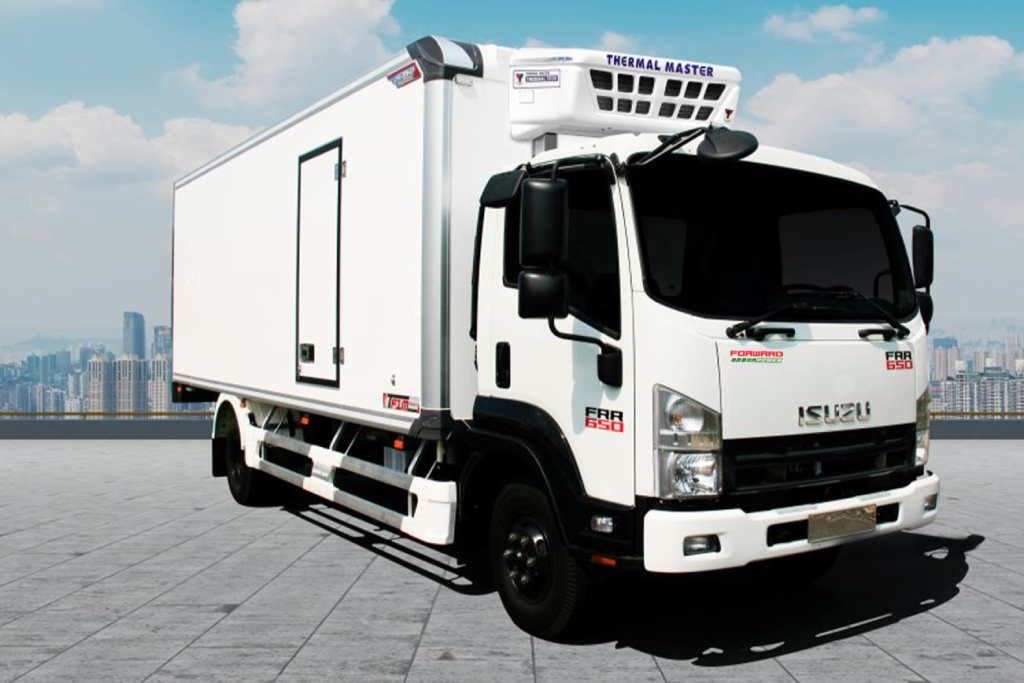

FRR90NE5

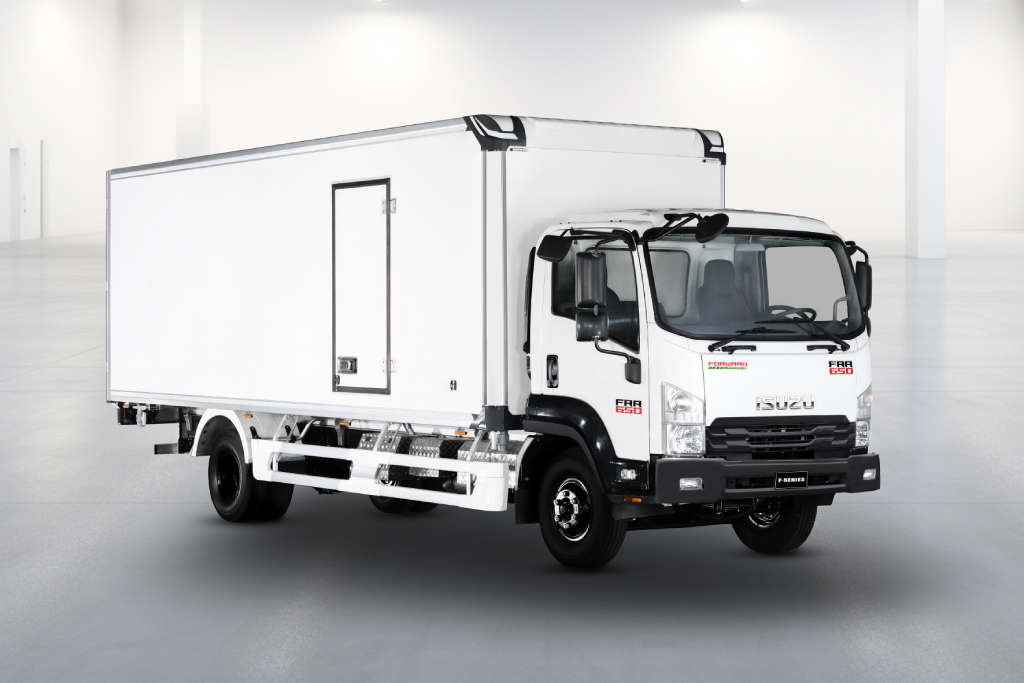

FRR90LE5
NQR75ME5
NQR75LE5
NPR85KE5

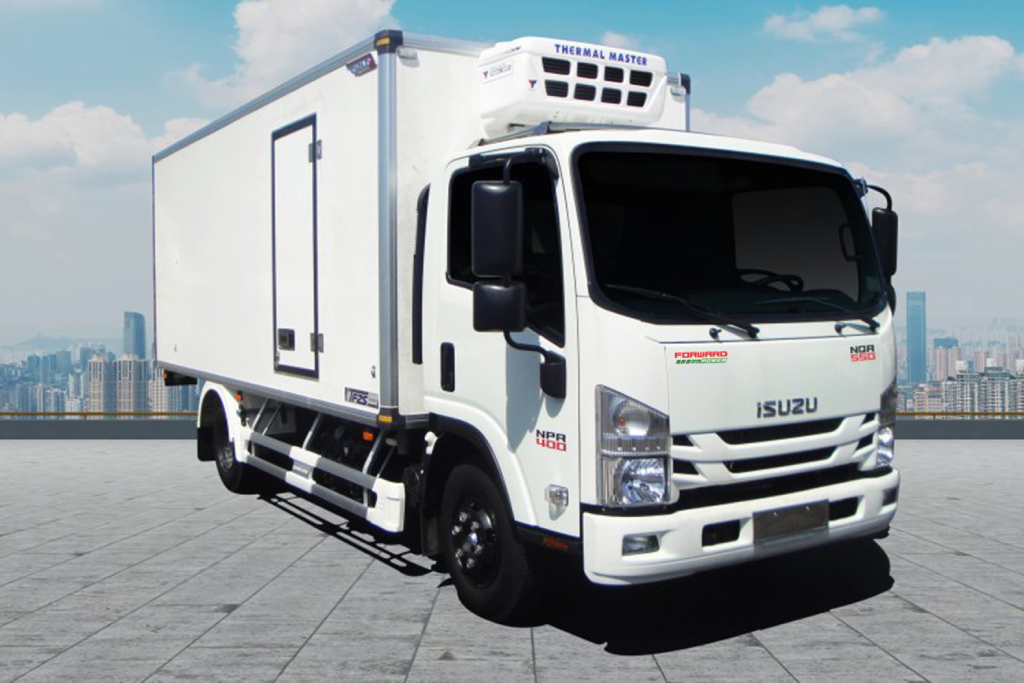

NMR85HE5
QKR QMR77HE5
QKR QLR77FE5

MODEL EXPLORER

Explore our Isuzu Spec Sheet Finder for a comprehensive view of our diverse lineup.
Discover performance details, features, and specifications for all available models, ensuring you find your perfect match.

FIND YOUR VEHICLE
