ISUZU - ACCOMPANYING WITH FLEET CUSTOMER
ISUZU truck chassis, with their durable engines, fuel efficiency, and stable performance, are trusted by many body builders to be fitted with specialized bodies such as garbage trucks, street sweepers, tank trucks, and sludge suction trucks. ISUZU environmental vehicles provide efficient solutions for waste collection, transportation, and treatment, contributing to a cleaner, greener environment and promoting sustainable development.
Road Sweeper
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 6,980 x 2,500 x 3,250 |
| wheelbase | mm | 4,300 |
| Gross vehicle weight | kg | 15,130 |
| Payload | kg | 5,000 |
| Engine | 6HK1E4NC | |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7,790 |
| Max Output | Ps(kW)/rpm | 214(177)/2,400 |
| Max Torque | N.m(kgf.m)/rpm | |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | HIEP HOA | |
| Rear body displacement | m3 | 6 m3 |
| Rear body shape | Curve shape | |
| Material | Stainless steel | |
| Water pump | Piston, 40liter/min | |
| Vacuum fan | Driven by belt pulley system, fan speed can be adjusted in cabin. | |
| Dust sweep hydraulic pump | Driven by P.T.O | |
| Motor thủy lực dẫn động hệ thống chổi | Operate main sweepers and side sweepers | |
- FVR34LE5 (4 x 2)

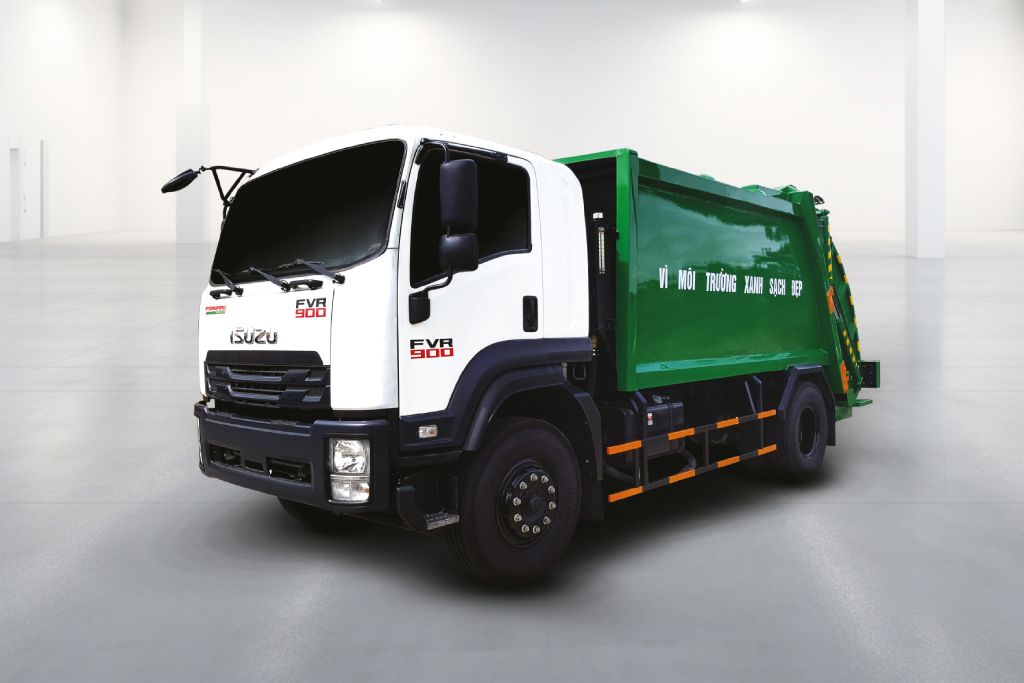

Garbage
| BASIC SPECIFICATION | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 8920 x 2500 x 3440 |
| Wheelbase | mm | 4115 + 1370 |
| GVW | KG | 24000 |
| Payload | KG | 10100 |
| Engine | 6HK1E4SC | |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 280(206) / 2400 |
| Max Torque | N.m(kgf.m)/rpm | 882(90) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 (Gai hỗn hợp) | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | m3 | 20 |
| Rear body shape | Curve shape on the top of rear body, avoid rear body deformation | |
| Material | SPA-H steel, Japan | |
| Hydraulic system | Imported parts from Europe | |
| Intake garbage structure | Standard 249-660 liter bin clip | |
| Discharge gabage structure | Under floor main sliprail & sub rail installed on the top corner of rear body | |
| Wastewater hose & storage | Seal structure, store and discharge wastewwater from rear body | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 8070 x 2500 x 3280 |
| wheelbase | mm | 4300 |
| Gross vehicle weight | kg | 16000 |
| Payload | kg | 6500 |
| Engine | kg | 6HK1E4NC |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 241(177)/2400 |
| Max Torque | N.m(kgf.m)/rpm | 706(72) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | m3 | 14 |
| Rear body shape | Curve shape on the top of rear body, avoid rear body deformation | |
| Material | SPA-H steel, Japan | |
| Hydraulic system | Imported parts from Europe | |
| Intake garbage structure | Standard 249-660 liter bin clip | |
| Discharge gabage structure | Under floor main sliprail & sub rail installed on the top corner of rear body | |
| Wastewater hose & storage | Seal structure, store and discharge wastewwater from rear body | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 6605 x 2330 x 2790 |
| wheelbase | mm | 3410 |
| Gross vehicle weight | kg | 11000 |
| Payload | kg | 4200 |
| Engine | kg | 4HK1E4CC |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 5193 |
| Max Output | Ps(kW)/rpm | 190(140)/2600 |
| Max Torque | N.m(kgf.m)/rpm | 513(52) / 1600~2600 |
| Tire size (Front / Rear) | 8.25-16 18PR (Gai ngang) | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | m3 | 11 |
| Rear body shape | Curve shape on the top of rear body, avoid rear body deformation | |
| Material | SPA-H steel, Japan | |
| Hydraulic system | Imported parts from Europe | |
| Intake garbage structure | Standard 249-660 liter bin clip | |
| Discharge garbage structure | Under floor main sliprail & sub rail installed on the top corner of rear body | |
| Wastewater hose & storage | Seal structure, store and discharge waste water from rear body | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 5410 x 1900 x 2350 |
| wheelbase | mm | 2750 |
| Gross vehicle weight | kg | 4990 |
| Payload | kg | 1550 |
| Engine | kg | 4JH1E4NC |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 2999 |
| Max Output | Ps(kW)/rpm | 105(77) / 3200 |
| Max Torque | N.m(kgf.m)/rpm | 230(23) / 2000~3200 |
| Tire size (Front / Rear) | 7.00-15 12PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | m3 | 4 |
| Rear body shape | Curve shape on the top of rear body, avoid rear body deformation | |
| Material | SPA-H steel, Japan | |
| Hydraulic system | Imported parts from Europe | |
| Intake garbage structure | Standard 249-660 liter bin clip | |
| Discharge gabage structure | Under floor main sliprail & sub rail installed on the top corner of rear body | |
| Wastewater hose & storage | Seal structure, store and discharge wastewwater from rear body | |
- FVZ34QE5 (6 x 4)
- FVR34LE5 (4 x 2)

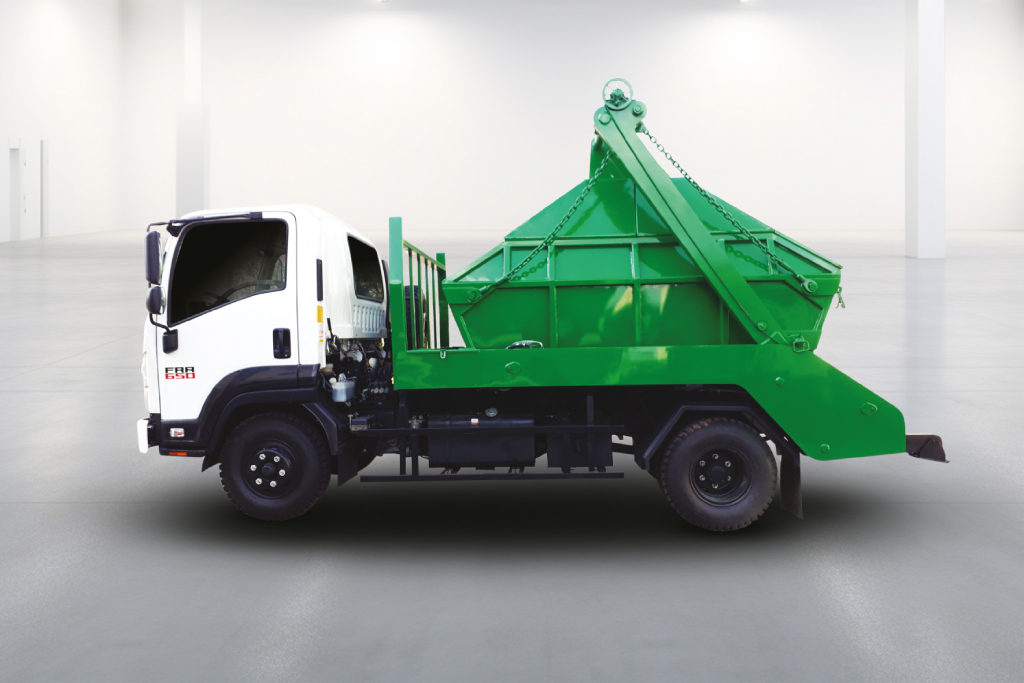

- FRR34HE5 (4 x 2)

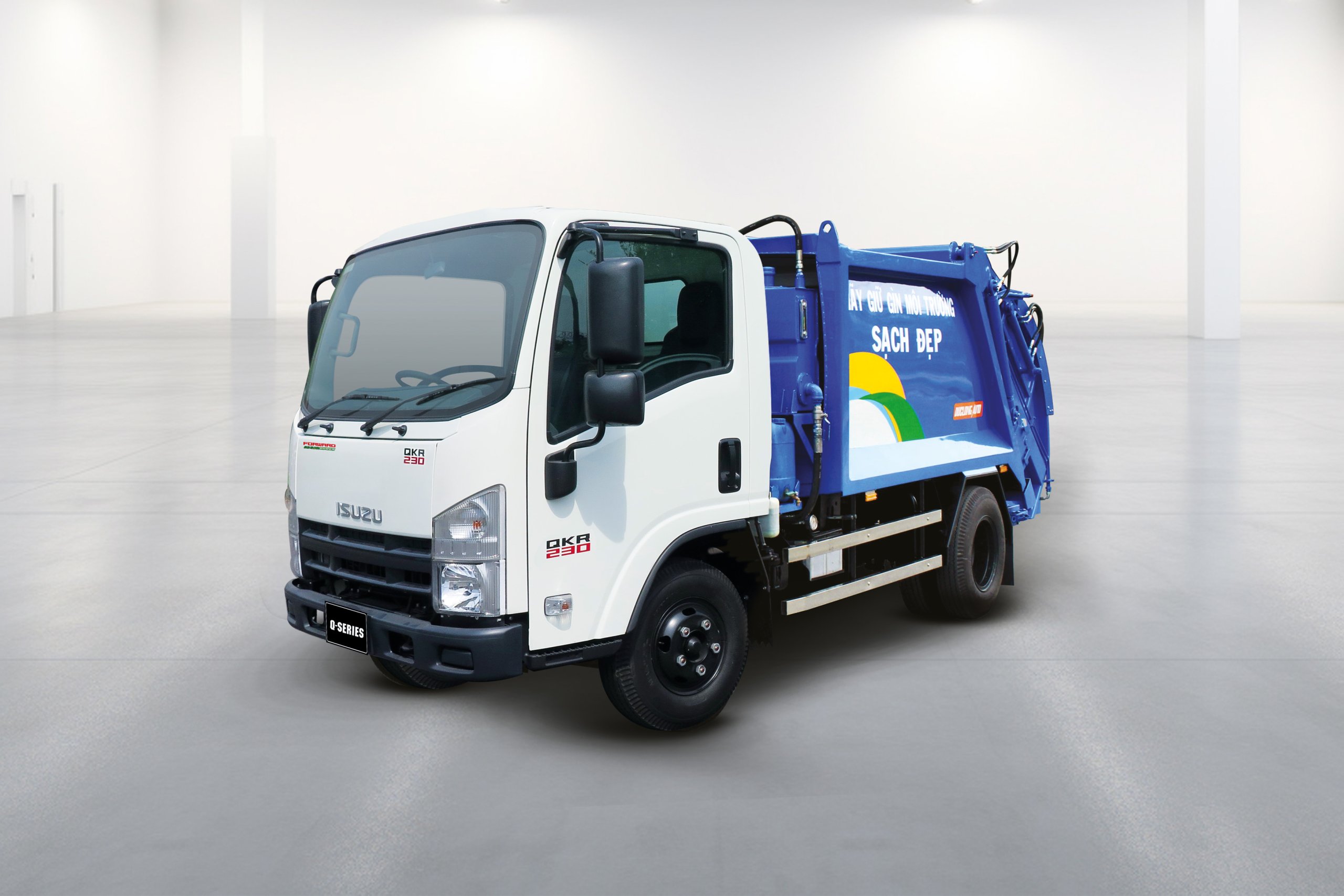

- QKR77FE5

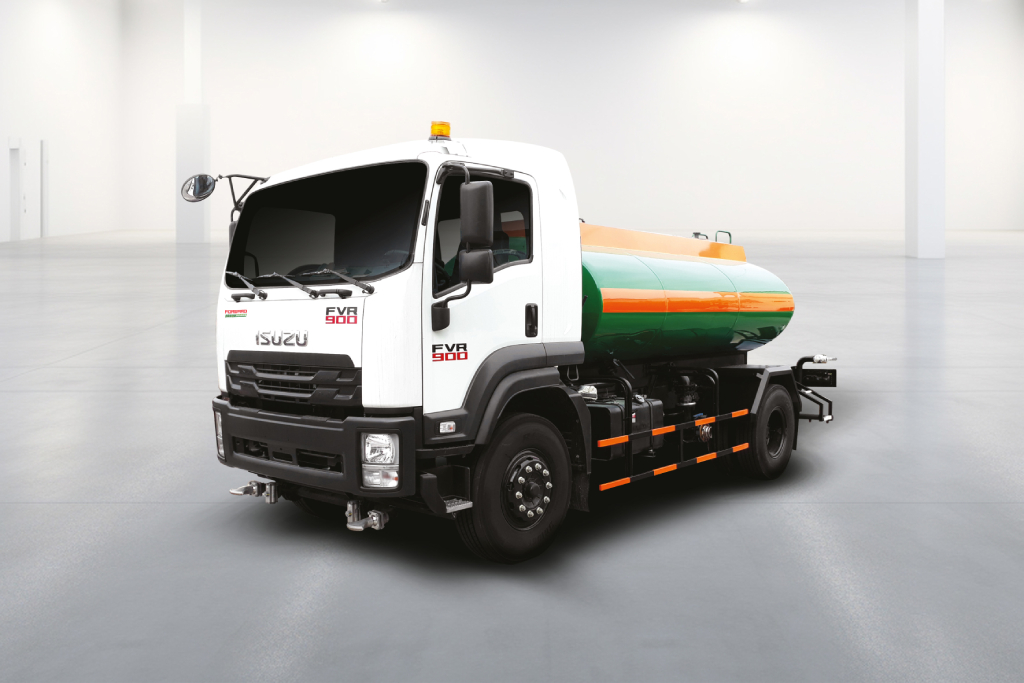

Tank
| BASIC SPECIFICATION | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 8810 x 2500 x 3080 |
| Wheelbase | mm | 4115 + 1370 |
| GVW | KG | 23800 |
| Engine | KG | 6HK1E4SC |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 280(206) / 2400 |
| Max Torque | N.m(kgf.m)/rpm | 882(90) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | HIEP HOA | |
| Structure | Elipse column | |
| Tank dimension | 5700/5540 x 2410 x 1410 | |
| Tank displacement | 15 m3 | |
| Material | Anti corrosion & anti acid specialized steel | |
| Water pump | Flow | 60m3/h |
| pressure column | 90m | |
| Safety structure | Wave wall | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 7660 x 2500 x 3080 |
| wheelbase | mm | 4300 |
| Gross vehicle weight | kg | 16000 |
| Engine | kg | 6HK1E4NC |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 241(177)/2400 |
| Max Torque | N.m(kgf.m)/rpm | 706(72) / 1450 |
| Tire size (Front / Rear) | 11.00 R20/11.00 R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | HIEP HOA | |
| Structure | Elipse column | |
| Tank dimension | 4220/4100 x 2100 x 1240 | |
| Tank displacement | 8,5 m3 | |
| Material | Anti corrosion & anti acid specialized steel | |
| Water pump | Flow | 60m3/h |
| pressure column | 90m | |
| safety structure | wave wall | |
- FVZ34QE5 (6 x 4) TANK TRUCK
- FVR34LE5 (4 x 2)

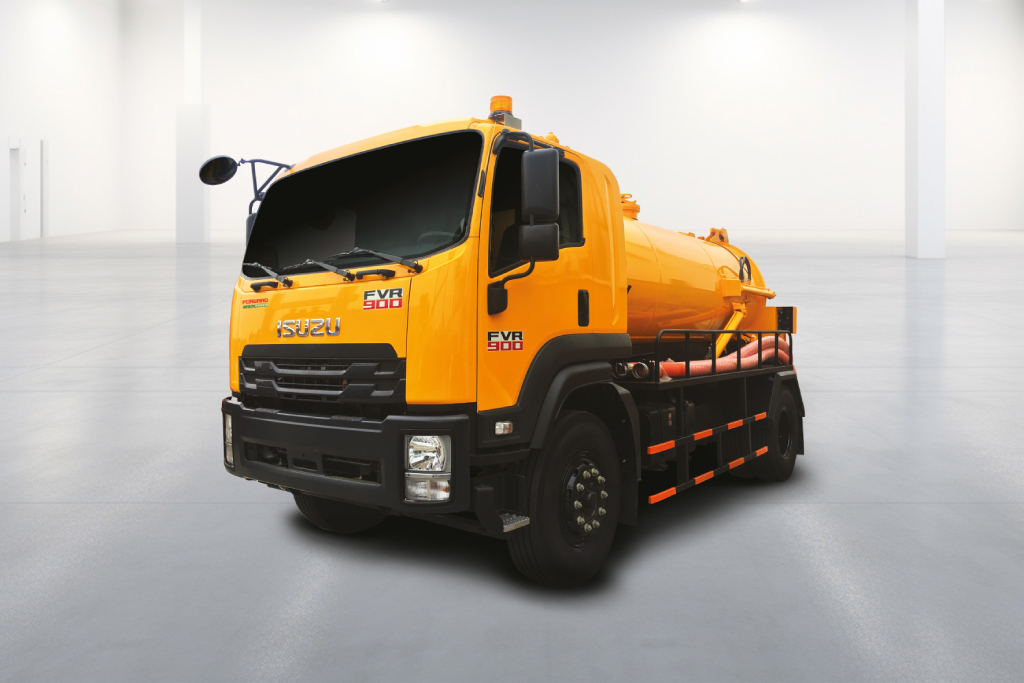

Vacuum
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 7660 x 2500 x 3080 |
| wheelbase | mm | 4300 |
| Gross vehicle weight | kg | 16000 |
| Payload | kg | |
| Engine | kg | 6HK1E4NC |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 241(177)/2400 |
| Max Torque | N.m(kgf.m)/rpm | 706(72) / 1450 |
| Tire size (Front / Rear) | 11.00 R20/11.00 R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | HIEP HOA | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 6180 x 2470 x 3300 |
| wheelbase | mm | 3410 |
| Gross vehicle weight | kg | 10000 |
| Payload | kg | 3700 |
| Engine | kg | 4HK1E4CC |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 5193 |
| Max Output | Ps(kW)/rpm | 190(140)/2600 |
| Max Torque | N.m(kgf.m)/rpm | 513(52) / 1600~2600 |
| Tire size (Front / Rear) | 8.25-16 14PR (Gai ngang) | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | HIEP HOA | |
- FVR34LE5 (4 x 2)
- FRR34HE5 (4 x 2)
