ISUZU - ACCOMPANYING WITH FLEET CUSTOMER
ISUZU specialized trucks for the construction industry feature robust designs, outstanding load capacity, and durable drivetrains. Variants such as dump trucks, flatbeds, and concrete mixers fully meet the heavy-duty transportation demands of the construction sector. They provide a reliable solution that helps businesses boost productivity and optimize costs.
Crane
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 8665 x 2500 x 3150 |
| Body inside Dimension | 6120 x 2340 x 575 | |
| wheelbase | mm | 4990 |
| Gross vehicle weight | kg | 11000 |
| Payload | kg | 5000 |
| Engine | 4HK1E4CC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 5193 |
| Max Output | Ps(kW)/rpm | 190 (140) / 2,600 |
| Max Torque | N.m(kgf.m)/rpm | 513 (52) / 1,600~2,600 |
| Tire size (Front / Rear) | 8.25-16 18PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Crane type | TADANO TM-ZE304MH | |
| Section | 4 | |
| Crane length | 3,3 – 10 | |
| Max lift capacity | 3030kg @ 2,5 m | |
| Max height | m | 11,4 |
| Max radius | m | 9,8 |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 11580 x 2500 x 3580 |
| Body inside Dimension | 8400 x 2350 x 300 | |
| wheelbase | mm | 5825 + 1370 |
| Gross vehicle weight | kg | 24000 |
| Payload | kg | 12500 |
| Engine | 6HK1E4SC | |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 280(206)/2400 |
| Max Torque | N.m(kgf.m)/rpm | 882(90) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Crane type | UNIC URV805YK-CNB | |
| Section | 5 | |
| Crane length | 4,4 – 15,9 | |
| Max lift capacity | 8070kg @ 2,5 m | |
| Max height | m | 17,5 |
| Max radius | m | 15,6 |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 9460 x 2500 x 3510 |
| Body inside Dimension | 6400 x 2350 x 645 | |
| wheelbase | mm | 5560 |
| Gross vehicle weight | kg | 15800 |
| Payload | kg | 6700 |
| Engine | 6HK1E4NC | |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 241(177)/2400 |
| Max Torque | N.m(kgf.m)/rpm | 706(72) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Crane type | UNIC URV554K-TH | |
| Section | 4 | |
| Crane length | 3,6 – 10,9 | |
| Max lift capacity | 5050kg @ 2,5 m | |
| Max height | m | 12,7 |
| Max radius | m | 10,6 |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 7580 x 2250 x 2960 |
| Body inside Dimension | 4850 x 2110 x 400 | |
| wheelbase | mm | 4175 |
| Gross vehicle weight | kg | 9500 |
| Payload | kg | 3420 |
| Engine | 4HK1E4NC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 5193 |
| Max Output | Ps(kW)/rpm | 155(114) / 2600 |
| Max Torque | N.m(kgf.m)/rpm | 419(43) / 1600~2600 |
| Tire size (Front / Rear) | 8.25-16 14PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Crane type | UNIC URV343K | |
| Section | 3 | |
| Crane length | 3,3 – 7,7 | |
| Max lift capacity | 3030kg @ 2,7 m | |
| Max height | m | 9,5 |
| Max radius | m | 7,5 |

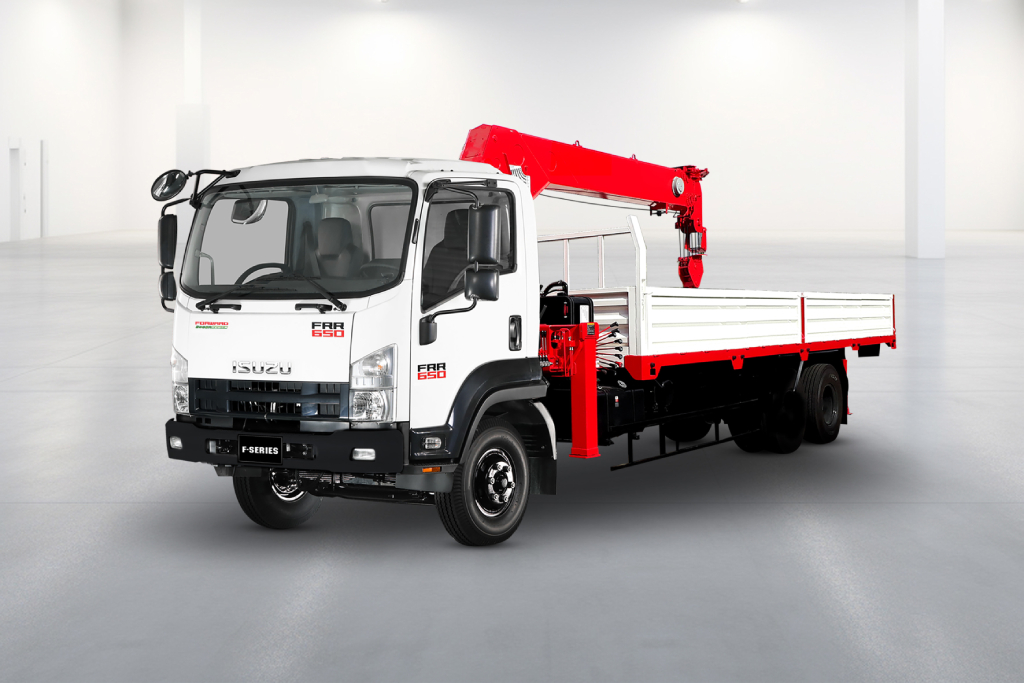

- FRR90NE5 (4x2)

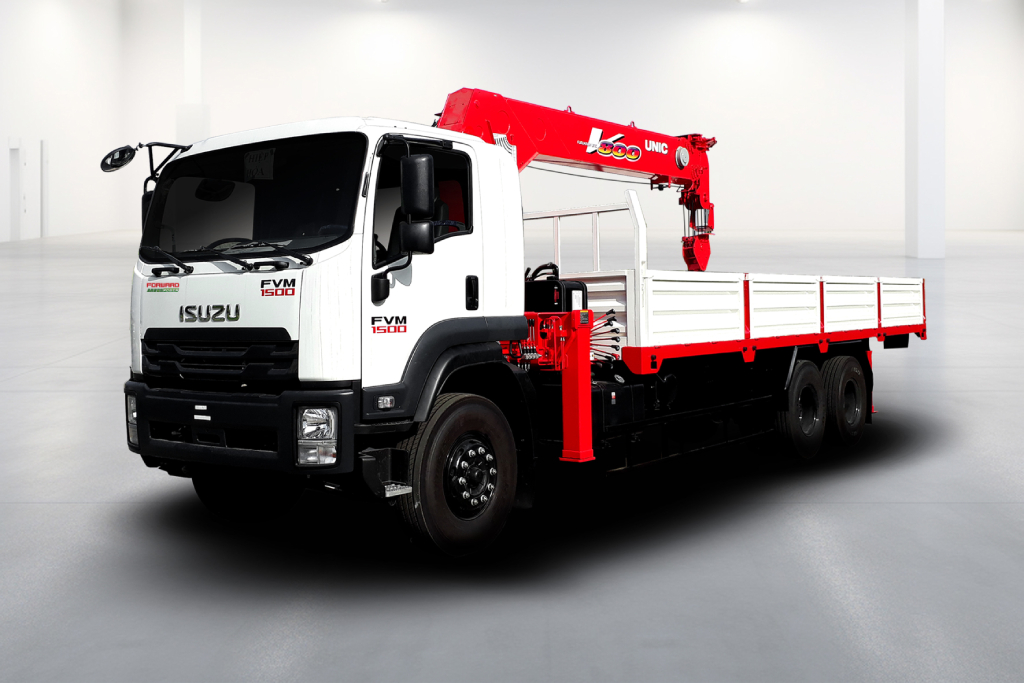

- FVM34WE5 (6 x 2)

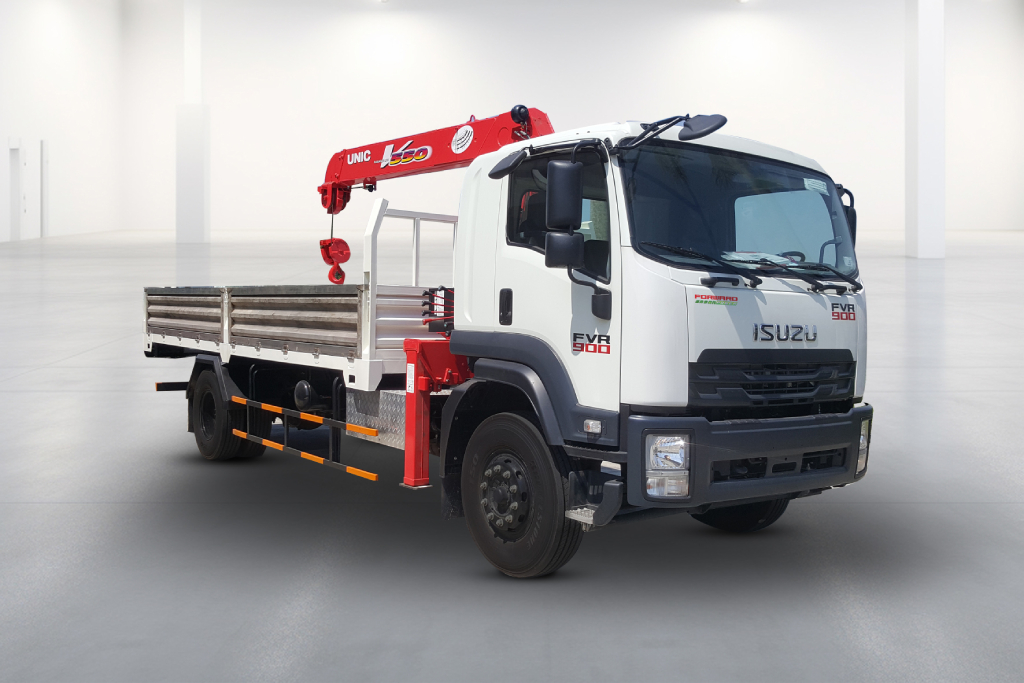

- FVR34QE5 (4 x 2)

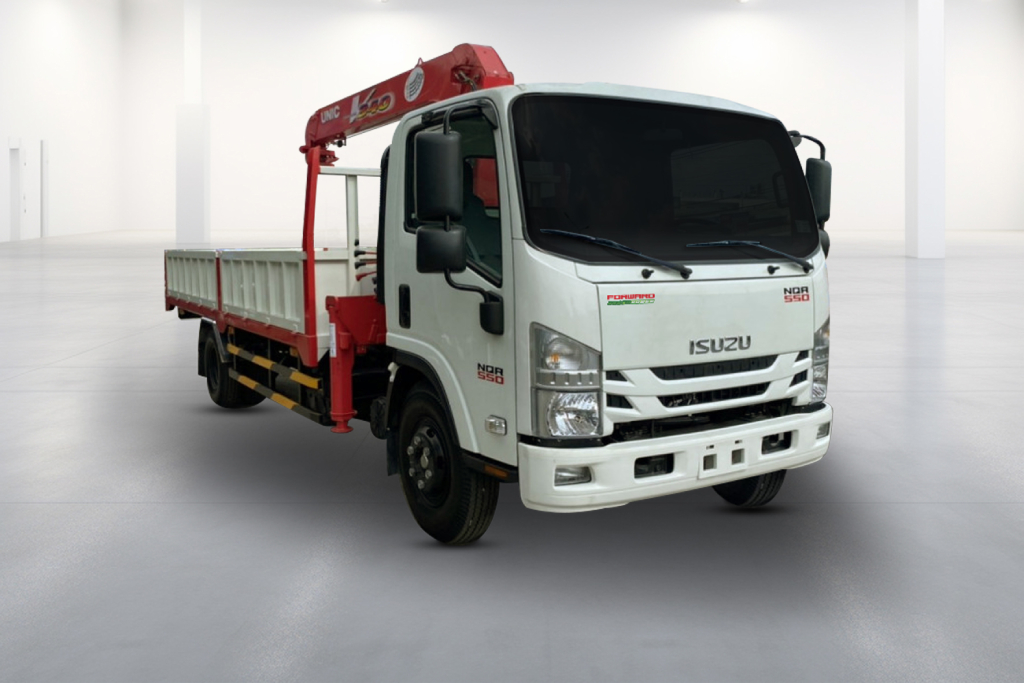

- NQR75LE5 (4 x 2)
Dump
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 4860 x 1875 x 2310 |
| wheelbase | mm | 2750 |
| Gross vehicle weight | kg | 4990 |
| Payload | kg | 2000 |
| Engine | 4JH1E4NC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 2999 |
| Max Output | Ps(kW)/rpm | 105(77) / 3200 |
| Max Torque | N.m(kgf.m)/rpm | 230(23) / 2000~3200 |
| Tire size (Front / Rear) | 7.00-15 12PR | |
| S Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | 2,5 m3 | |
| Rear body structure | Reinforce panel outside rear body wall | |
| Material | alloy steel | |
| Tailgate | 01 tailgate, open/close automatically when lifting rear body | |
| Rear body lift control | Manual, control lever inside cabin | |
| Hydraulic system | Imported | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 6960 x 2450 x 2900 |
| wheelbase | mm | 4300 |
| Gross vehicle weight | kg | 16000 |
| Payload | kg | 8200 |
| Engine | 6HK1E4NC | |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 241(177) / 2400 |
| Max Torque | N.m(kgf.m)/rpm | 706(72) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | 6,8 m3 | |
| Rear body structure | Reinforce panel outside rear body wall | |
| Material | alloy steel | |
| Tailgate | 01 tailgate, open/close automatically when lifting rear body | |
| Rear body lift control | Manual, control lever inside cabin | |
| Hydraulic system | Imported | |
| BASIC SPECIFICATION | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 7755 x 2500 x 2980 |
| Wheelbase | mm | 4115 + 1370 |
| GVW | KG | 24000 |
| Payload | KG | 13100 |
| Engine | 6HK1E4SC | |
| Engine type | 4 stroke, in-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 280(206) / 2400 |
| Max Torque | N.m(kgf.m)/rpm | 882(90) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | 10,67 m3 | |
| Rear body structure | Reinforce panel outside rear body wall | |
| Material | Alloy steel | |
| Tailgate | 1 tailgate, open/close automatically when lifting rear body | |
| Rear body lift control | Manual, control lever inside cabin | |
| Hydraulic system | Imported | |

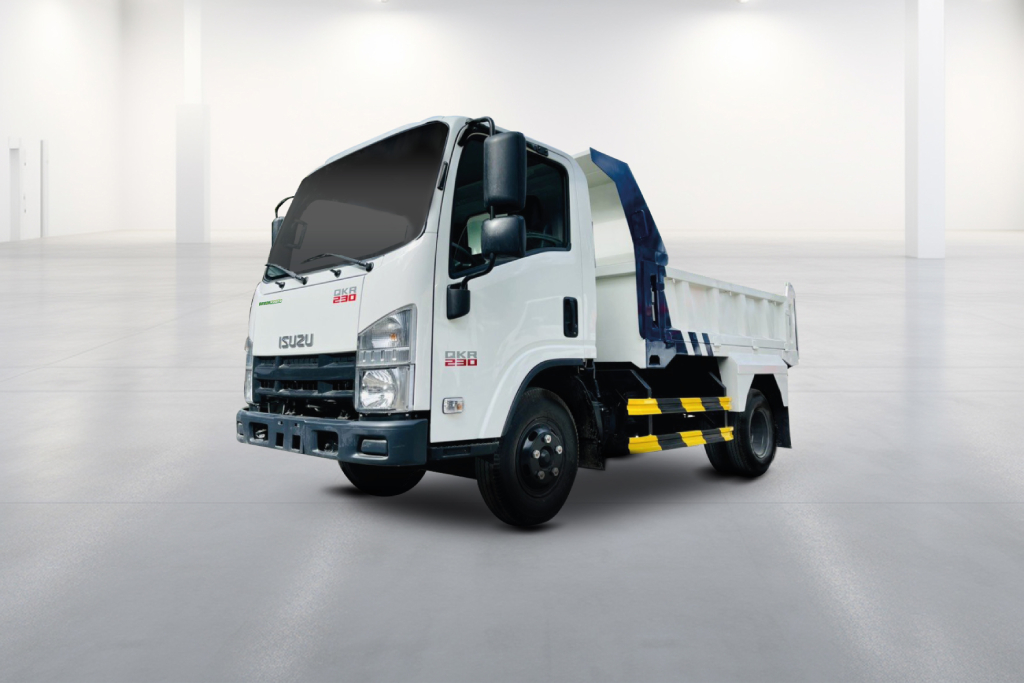

- QKR - QLR77FE5 (4x2)

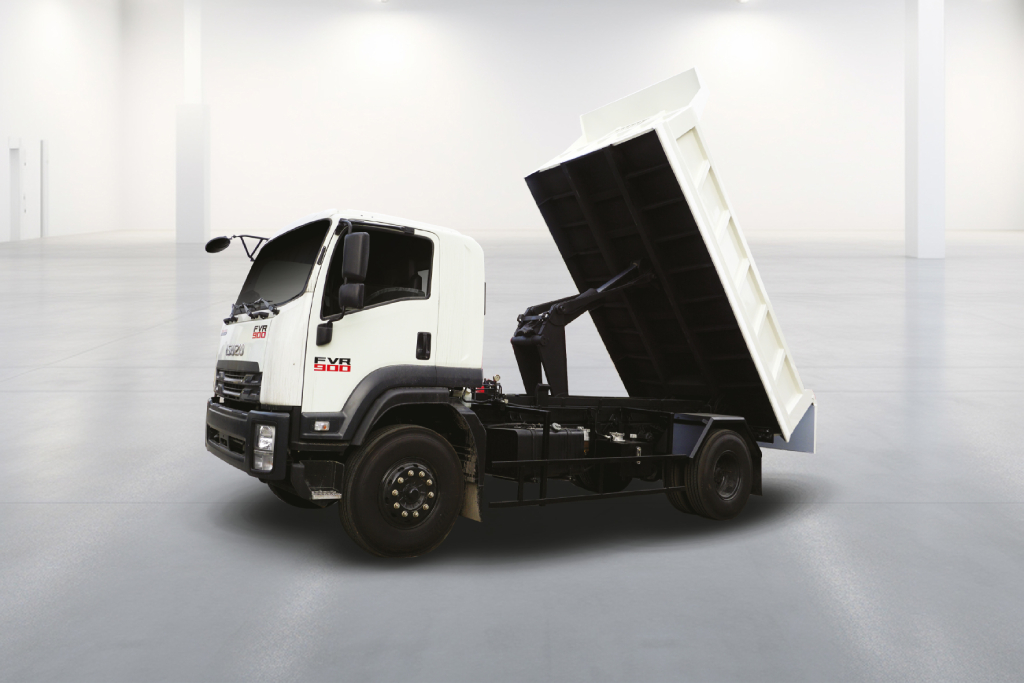

- FVR34LE5 (4x2)

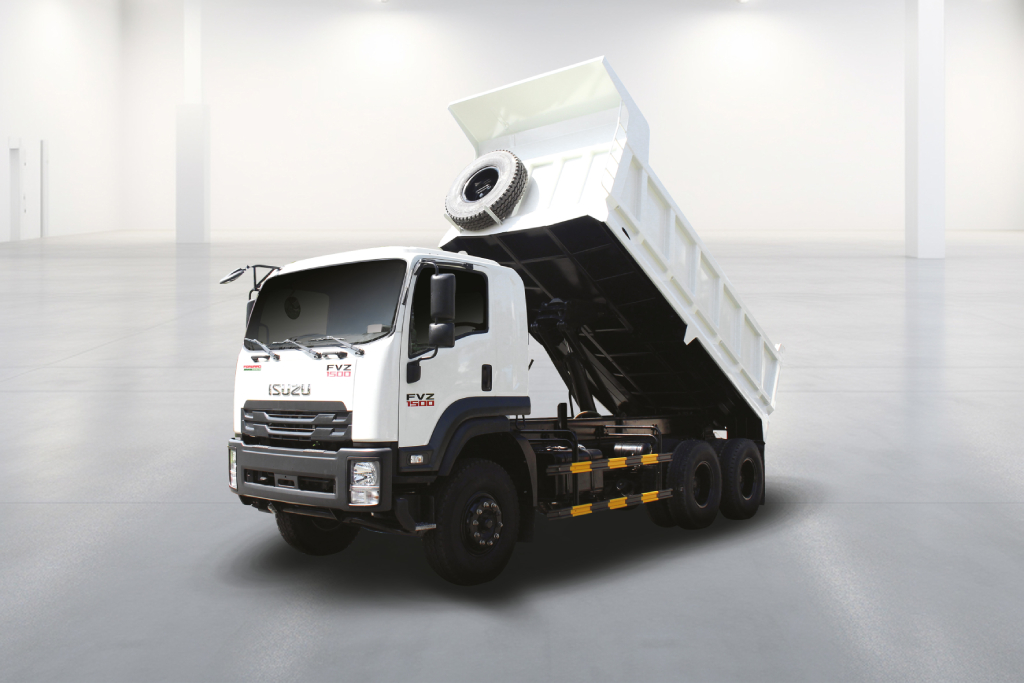

- FVZ34QE5 (6 x 4)
